FAAC - OIL-HYDRAULIC GEARMOTOR FOR UP-AND-OVER DOORS WITH COUNTER-WEIGHTS, FOR INTENSIVE USE
- IDEAL FOR UP-AND-OVER GARAGES DOORS UP TO 3.5 M OF WIDTH X 3 MT OF LENGTH
- EQUIPPED WITH HYDRAULIC LOCK ON OPENING/CLOSING
- VERSION WITH 2 ACTUATORS FOR MORE THAN 3.5 M WIDTH
- CONTROL UNIT NOT INTEGRATED
- ANTI-CRUSHING SAFETY ENSURED BY A HYDRAULIC DEVICE
- DURABLE, POWERFUL AND SILENT SAFE ACTUATOR
- GUARANTEED TIGHTNESS OF THE DOOR DURING OPENING, EVEN IN STRONG WINDS

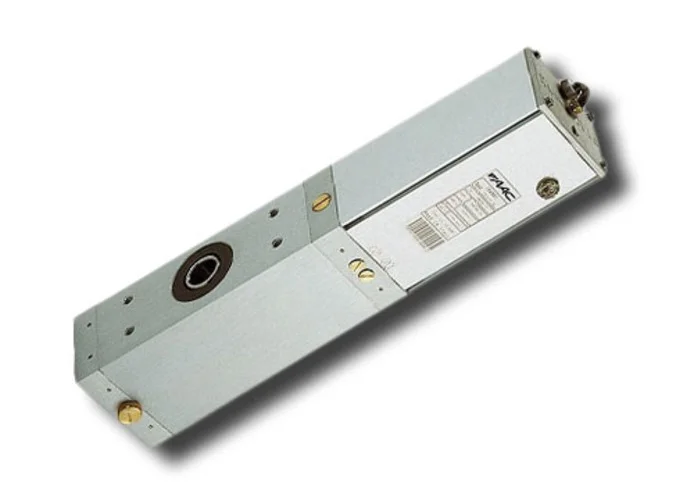

ACTUATOR 580 CBAC
104501
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60
- ELECTRIC MOTOR: ASYNCHRONOUS SINGLE-PHASE
- MAX POWER: 220 W
- MAX TORQUE: 450 NM (*)
- MOTOR-PUMP UNIT CAPACITY: 0,75 LPM (*)
- MAX ANGLE SPEED: 9°15'/S (*)
- OPENING TIME: 20
- OPERATING TEMPERATURE: -20 °C ÷ +55 °C
- THERMOPROTECTION: 120 °C
- DEGREE OF PROTECTION: IP55
- OIL TYPE: FAAC HP OIL
- WEIGHT: 12 KG
- SIZES (LXPXH): 480 X 96 X 110 MM
- MAX LEAF SIZES (LXH): 3,50 X 3,00 (**)
- MAX LEAF WEIGHT: 15 KG/MQ
- ELECTRONIC EQUIPMENT: NOT INCLUDED
- USE FREQUENCY: 60 CYCLES/HOUR
Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. E for electronic boards 720119
- securing longitudinal support length 1,5 mt 722299
- pair of transmission pipes with lateral supports, for installation with 1 operator 390434 WITHOUT WELDING
- pair of transmission pipes (for 2 operators) with lateral supports 390435 WITHOUT WELDING
- packs with two straight telescopic arms 390432 WITHOUT WELDING
- packs with two curved telescopic arms 390433 WITHOUT WELDING
- key-operated external release for doors up to 15 mm thick from no. 1 to no. 36, 424560001/424560036
- key-operated external release for doors over 15 mm thick no. 1 to no. 36, 424560101/424560136
- RP 433 SLH card receiver 787824
- XT2 433 SLH LR two-channel transmitter, 787007
