FAAC - KIT AUTOMATION FOR SWING DOORS WITH LEAF UP TO 2,5 MT IN LENGHT AND 500 KG IN WEIGHT.
- SUITABLE FOR DOMESTIC OR SMALL TERTIARY USE
- THE WEIGHT OF THE GATE RESTS ON THE SELF-SUPPORTING UNDERGROUND BOX, GUARANTEEING A LONG LASTING LIFE MOTOR (THE BOX NOT SUPPLIED IN THE KIT CAN THEREFORE BE INSTALLED IN ADVANCE, SO ADD 1 BOX PER GATE LEAF).
- THE CONTROL UNIT AUTOMATICALLY MANAGES MOTION AND DECELERATION DURING OPENING/CLOSING AND OFFERS VARIOUS SPEED AND FORCE CHOICES.
- POSSIBILITY TO CONNECT AN ELECTRIC LOCK.
- THE AUTOMATION IS EQUIPPED WITH AN ANTI-CRUSHING SAFETY DEVICE IN COMPLIANCE WITH EUROPEAN STANDARDS.
- IT IS ESSENTIAL TO INSERT THE OPENING STOPS IN THE 24V AND 230V KITS (ADD 1 STOP PER BOX).
- IN THE EVENT OF A POWER FAILURE, THE KEY RELEASE SYSTEM, ACCESSIBLE FROM INSIDE OR OUTSIDE, ALLOWS THE GATE TO BE OPERATED MANUALLY.
770N 24V 106745
24V DC

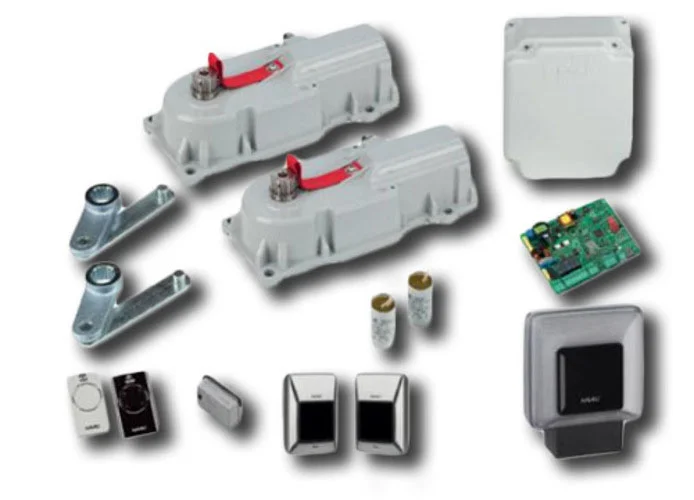

INCLUDE:
- 2 10675301: Uderground electromechanical gearmotor 770n, for swing gates for residential use, up to 3,5 m (with electric lock) and up to 500 kg of weight, 24Vdc
- 2 404035: Encoder group for 770n
- 1 790286: Electronic board e024s, with container 24Vdc
- 1 787832 (ex 319007): Receiver xf 868
- 1 410029: Flashing light xled 230- 115- 24v
- 1 787010: Remote control 4-channel xt4 slhxt4 slh 868 mhz white
- 1 7870101: Remote control 4-channel xt4 slhxt4 slh 868 mhz black
- 1 7851061: Pair stainless steel wall-mounted photocells xp30b
- 1 "automatico faac" sign
