FAAC - KIT AUTOMATION FOR SWING GATES UP TO 2 MT IN LENGHT AND 500 KG IN WEIGHT PER LEAF
- OPENING UP TO 180°
- SUITABLE FOR DOMESTIC OR SMALL TERTIARY USE
- THE WEIGHT OF THE GATE RESTS ON THE SELF-SUPPORTING UNDERGROUND BOX, ENSURING A LONG LASTING LIFE MOTOR.
- READY CONNECT WITH E024S AND E045S BOARDS FOR HOME AUTOMATION MANAGEMENT.
- THE CONTROL UNIT AUTOMATICALLY MANAGES MOTION AND DECELERATION DURING OPENING/CLOSING AND OFFERS VARIOUS SPEED AND FORCE CHOICES.
- POSSIBILITY TO CONNECT AN ELECTRIC LOCK.
- THE AUTOMATION IS EQUIPPED WITH AN ANTI-CRUSHING SAFETY DEVICE IN COMPLIANCE WITH EUROPEAN STANDARDS.
- IN THE EVENT OF A POWER FAILURE, THE KEY RELEASE SYSTEM, ACCESSIBLE FROM INSIDE OR OUTSIDE, ALLOWS THE GATE TO BE OPERATED MANUALLY.
THE FOUNDATION BOXES ARE NOT INCLUDED IN THE KIT (CODE 490065 CAN BE PURCHASED SEPARATELY)
770N 24V 106744
230V AC

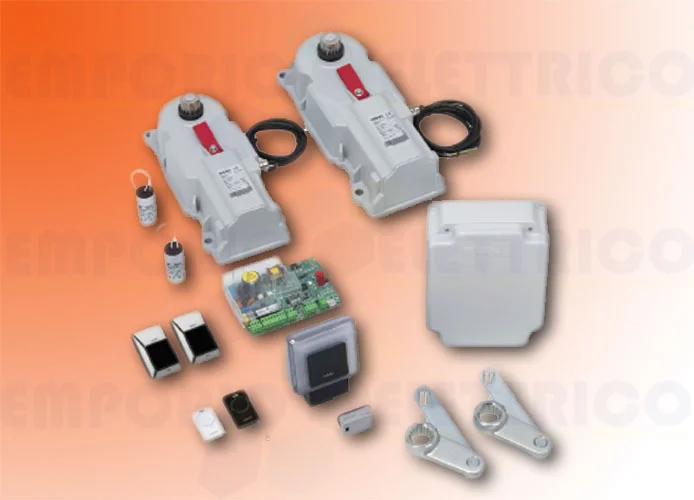

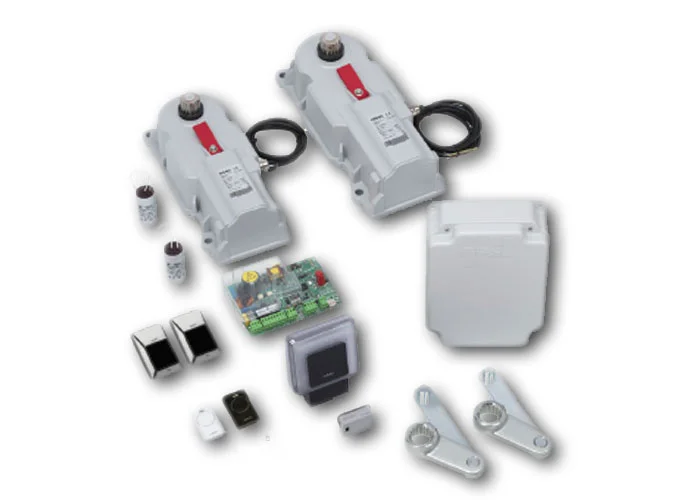

IT INCLUDES:
- 2 10675201: Underground electromechanical gearmotor 770n, for swing gates for residential use up to 2 m (up to 500 kg of weight)
- 1 720119: Electronic board casing mod. e
- 1 790077 (ex 790005): Electronic board e045s 230v ac
- 2 404035: Encoder group for 770n
- 1 787832 (ex 319007): Receiver xf 868
- 1 410029: Flashing light xled 230- 115- 24v
- 1 787010: Remote control 4-channel xt4 slhxt4 slh 868 mhz white
- 1 7870101: Remote control 4-channel xt4 slhxt4 slh 868 mhz black
- 1 7851061: Pair stainless steel wall-mounted photocells xp30b
- 1 "automatico faac" sign
