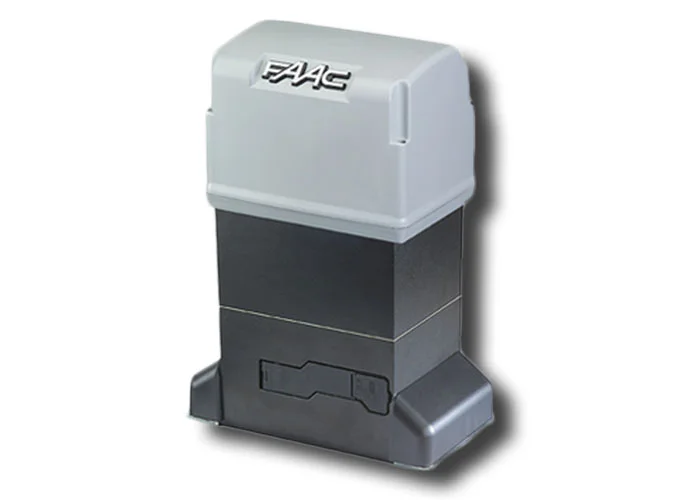

FAAC - ELECTROMECHANICAL GEARMOTOR FOR SLIDING GATES, UP TO 1800 KG OF WEIGHT
"E781" CONTROL UNIT, M4 PINION, MAGNETIC LIMIT SWITCH
OLD 844 ER Z16 109837
NEW 844 C Z16 109925
230V AC
TECHNICAL FEATURES:
MAINS SUPPLY VOLTAGE: 220-240V - 50/60 HZ
MAX. POWER: 230w
PINION: Z16 MODULE 4
MAX. THRUST FORCE: 1300N
MAX. LEAF WEIGHT: 1800KG
MAX. LEAF SPEED: 9.6M/MIN
MAX. LEAF LENGTH: 40M
STOPPING SPACE: 30MM
DEGREE OF PROTECTION: IP44
STARTING CAPACITOR: 18 µF
OPERATING AMBIENT TEMPERATURE: -20° ÷ +55°.
THERMAL PROTECTION:120° SELF-RESTORING

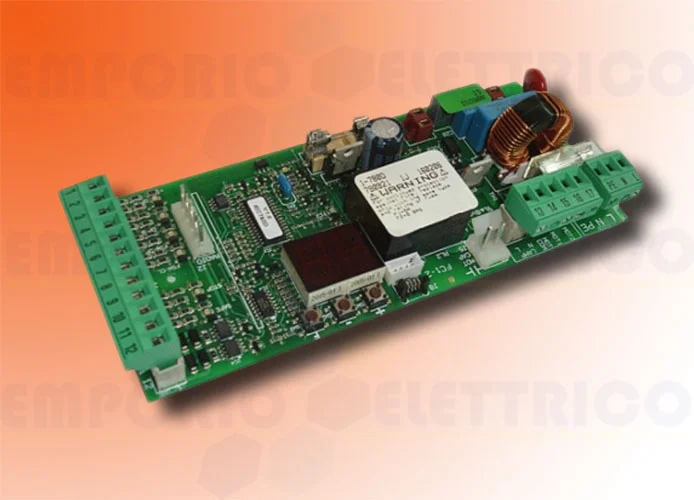

ELECTRONIC EQUIPMENT: E781 BUILT-IN.
