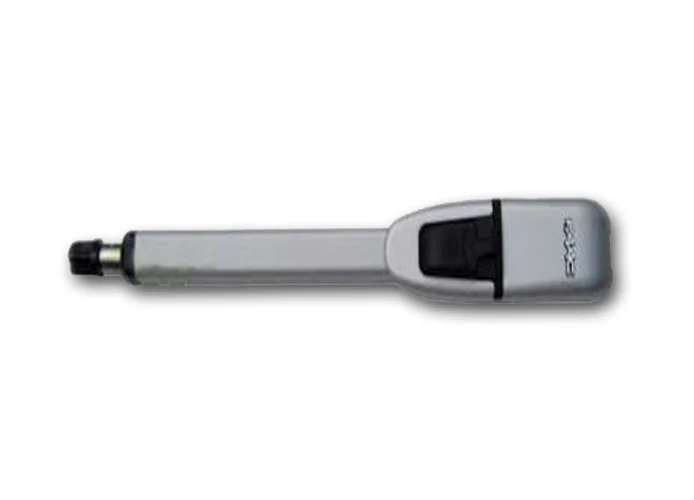

FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWING GATES FOR RESIDENTIAL USE, LEAF UP TO 3 METERS (4 MT WITH ELECTROMAGNETIC LOCK)
- SUITABLE FOR RESIDENTIAL USE
- "ON-AXIS" PUSH ACTUATOR
- DIE-CAST ALUMINIUM BODY FULLY DOUBLE-PAINTED FOR DURABILITY
- MANUAL RELEASE DEVICE WITH SIMPLIFIED OPERATION PROTECTED BY A KEY
- HORIZONTAL CABLE OUTLET TO ALLOW INSTALLATION CLOSE TO THE GROUND
ACTUATOR 415 L LS
104418
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY: 230 VAC
- POWER: 300 W
- CURRENT: 1,3 A
- THERMOPROTECTION: 140° C
- CAPACITOR: 8 µF
- THRUST: 300 DAN
- ROD STROKE: 400 MM
- OUTPUT SPEED ROD: 1,6 CM/SEC
- MAX LEAF WIDTH: 4 M
- SIZES (L X P X H) IN MM: 940 X 105 X 148
- DEGREE OF PROTECTION: IP54
- LIMIT SWITCHES: YES
Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. L for electronic boards 720118
- container mod. E for electronic boards 720119
- container mod. LM for electronic boards 720309
- wall plate 737604
- SAFEcoder magnetic absolute encoder BUS (FAAC patented) 404040
- flashing light Xled 410029
- XF 433 MHz 787831 card receiver (EX 319006)
- two-channel transmitter XT2 433 SLH LR, 787007
- key button T10 401010001/36
