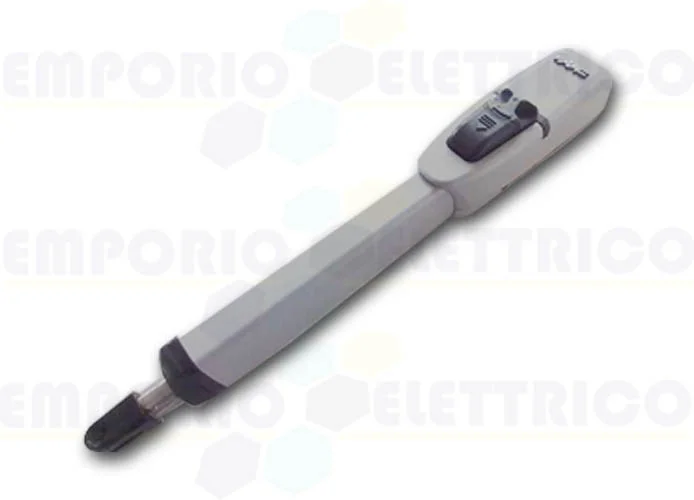

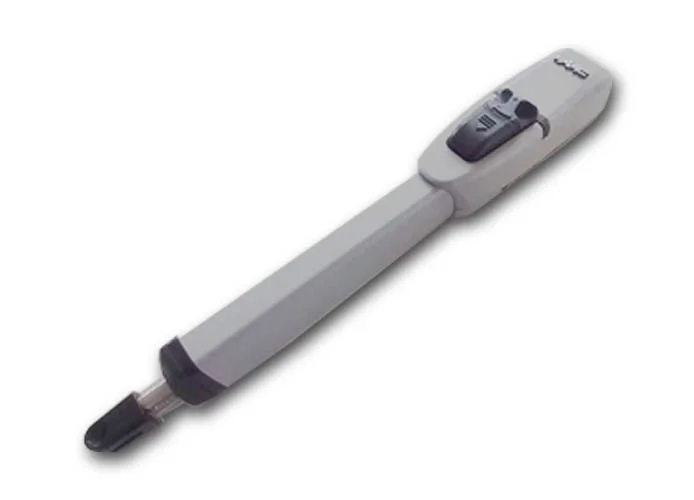

FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWINGING GATES, FOR RESIDENTIAL APPLICATION, LEAF UP TO 3M (4M WITH ELECTRICAL LOCK)
- SUITABLE FOR RESIDENTIAL USE
- "ON-AXIS" PUSH ACTUATOR
- DIE-CAST ALUMINIUM BODY FULLY DOUBLE-PAINTED FOR DURABILITY
- MANUAL RELEASE DEVICE WITH SIMPLIFIED OPERATION PROTECTED BY A KEY
- HORIZONTAL CABLE OUTLET TO ALLOW INSTALLATION CLOSE TO THE GROUND
ACTUATOR 415 L
104417
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY: 230V~ 50 HZ
- ELECTRIC MOTOR: ASYNCHRONOUS SINGLE-PHASE
- MAX POWER: 300 W
- MAX THRUST: 3000 N
- OUTPUT SPEED ROD: 16 MM/S
- ROD STROKE: 400 MM
- MAX OPENING LEAF WIDTH: 110°
- OPERATING TEMPERATURE: -20°C ÷ +55°C
- THERMOPROTECTION: 140°C
- DEGREE OF PROTECTION: IP54
- SIZES (LXPXH): 940 X 105 X 148 MM
Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. E for electronic boards 720119
- wall plate 737604
- SAFEcoder magnetic absolute encoder BUS (FAAC patented) 404040
- XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
