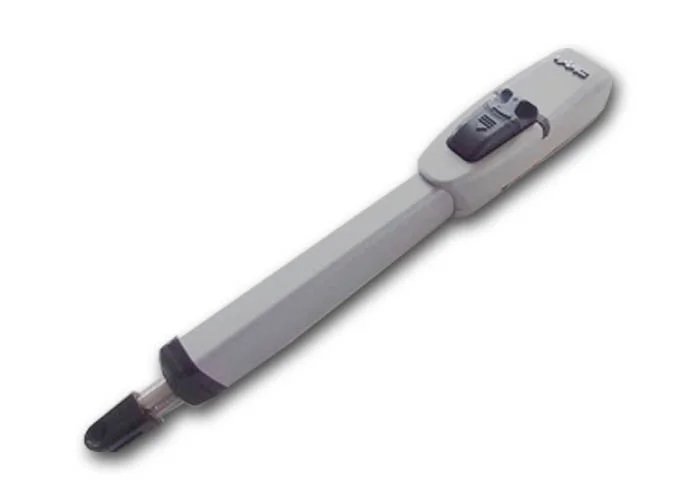

FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWINGING GATES, FOR RESIDENTIAL APPLICATION, LEAF UP TO 2,5 M (3M WITH ELECTRICAL LOCK)
- SUITABLE FOR RESIDENTIAL USE
- "ON-AXIS" PUSH ACTUATOR
- HALF-BODY COUPLING WITH GASKET
- DOUBLE-LAYER PAINTED DIE-CAST ALUMINIUM BODY
- MANUAL RELEASE DEVICE WITH SIMPLIFIED OPERATION PROTECTED BY KEY
- HORIZONTAL CABLE OUTLET TO ALLOW INSTALLATION CLOSE TO THE GROUND
- SET-UP FOR USE OF "GATECODER" OBSTACLE DETECTION DEVICE
ACTUATOR 415
104415
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY: 230Vac
- POWER: 300 W
- CURRENT: 1,3 A
- THERMOPROTECTION: 140 °C
- CAPACITOR: 8 µf
- THRUST: 300 daN
- ROD STROKE: 300mm
- OUTPUT SPEED ROD: 1,6 cm/sec
- TYPE AND FREQUENCY OF USE AT 20 °C: S3 - 30%
- OPERATING TEMPERATURE: -20 °C / +55 °C
- SIZES (L X P X H): 785 X 105 X 148 mm
- DEGREE OF PROTECTION: IP54
- LIMIT SWITCHES: NO
Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. E for electronic boards 720119
- wall plate 737604
- SAFEcoder magnetic absolute encoder BUS (FAAC patented) 404040
- XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
- case protection cover 727525
