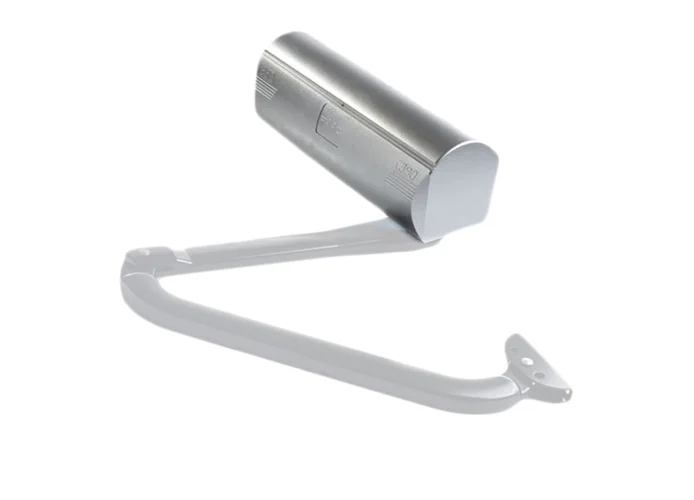

FAAC - ELECTROMECHANICALGEARMOTOR WITH ARTICULATED ARM (NOT INCLUDED) FOR SWING GATES FOR RESIDENTIAL APPLICATION, WITH LEAF UP TO 1,8M (3M WITH ELECTRIC LOCK) AND DOUBLE FOLDING GATES (UP TO 1,5M OF WIDTH EACH PANEL)
- IRREVERSIBLE ACTUATOR, DOES NOT REQUIRE AN ELECTROLOCK UP TO 1.8 M.
- SUITABLE FOR USE ON LARGE PILLARS THANKS TO THE ARTICULATED ARM.
- MANUAL RELEASE DEVICE OPERABLE FROM INSIDE OR OUTSIDE THE PROPERTY
ACUATOR 390 230V AC
104570
TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60 HZ
- ELECTRIC MOTOR: ASYNCHRONOUS SINGLE-PHASE
- MAX POWER: 280 W
- MAX TORQUE: 250 NM (*)
- MAX ANGULAR SPEED: 8 °/S (*)
- MAX ANGLE LEAF OPENING: 120°
- OPERATING TEMPERATURE: -20°C ÷ +55°C
- THERMOPROTECTION: 140°C
- DEGREE OF PROTECTION: IP44
- USE FREQUENCY: S3 - 30%
- MAX LEAF WIDTH: 1,8 M (3 M WITH ELECTRIC LOCK)
- SIZES (LXPXH): 412 X 133 X 134 MM
- ELECTRONIC EQUIPMENT: NOT INCLUDED
Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. E for electronic boards 720119
- jointed arm 738705
- telescopic arm (application for folding doors) 738706
- XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
- single limit switch kit on opening or closing 390682
- external release device with cable and sheath Length 5 m 401057
- electro lock 12v ac complete with floor-mounted hatch 712650
- single-leaf gate pillar connection 712990
