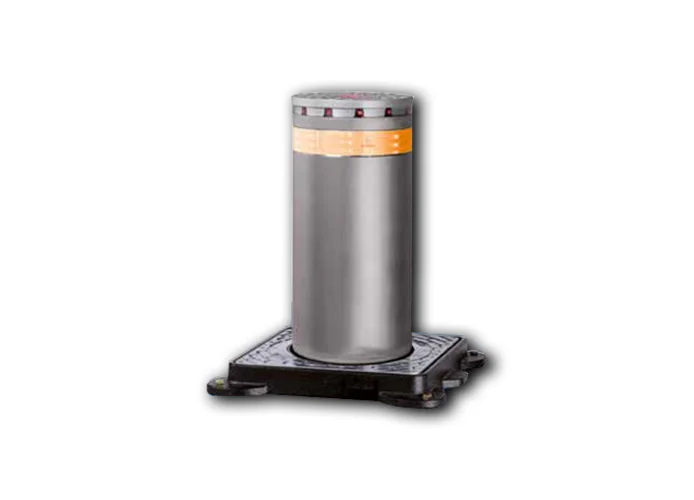

faac automatic retractable bollard j275 ha v2 h800 116007

SKU: 116007

€4,973.64VAT INCLUDED

FAAC - AUTOMATIC BOLLARD FOR COMMERCIAL AND INDUSTRIAL AREAS AND CITY GATES.

THIS RETRACTABLE BOLLARD J275 HA V2 IS RECOMMENDED FOR ALL AREAS WHERE MANY TRANSITS ARE EXPECTED PER DAY
-  HEIGHT 800MM
-  GUARANTEED FOR HIGH FREQUENCIES OF USE

-  FULL OPTIONAL PRODUCT, SUPPLIED ALREADY EQUIPPED WITH THE MAIN ACCESSORIES
-  HYDRAULIC UNIT INTEGRATED IN THE BOLLARD
-  PERFECT INTERCHANGEABILITY WITH FIRST-GENERATION BOLLARDS
-  GENTLE STOP FUNCTION TO ENSURE A GENTLE STOP ON THE LOW LIMIT SWITCH

THE PRODUCT IS EQUIPPED WITH:

-  7 MM THICK STEEL CYLINDER WITH CATAPHORESIS TREATMENT AND PAINTED
-  METALLIC DARK GREY POWDER COATING RAL7021
-  CROWN FLASHING LIGHT WITH LED LIGHT
- MOVEMENT SOUND ALARM
-  EMERGENCY LOWERING IN CASE OF POWER CUT

- RELEASE KEY FOR MANUAL EMERGENCY LOWERING

- ARTICLE BY ORDER, AVAILABILITY 1-2 WEEKS.


FAAC J275 HA V2 H800
116007




Actuator type


Hydraulic actuator

Cylinder height above ground

800 mm

Cylinder diameter

275 mm

Cylinder treatment type



Cataphoresis and RAL 7021 metallic dark grey polyester powder coating



Climbing time

~5 s (*)

Descent time

~3,5 s (*)

Emergency lowering device

YES (excludable)

Emergency lowering time

~1,2 s (*)

Lifting obstacle detection

YES

Release device

YES

Slowing down

YES

Mains supply voltage

220-240V ~ 50/60Hz

Maximum power

575 W (*)

Hydraulic unit degree of protection

IP67

Type of use

Uso intensivo (Traffico)

Impact resistance



38.000 J

Breaking resistance



128.000 J

Cockpit weight



55 Kg

Bollard weight



133 Kg

Load class (EN 124)

C250 (25t)

Ambient operating temperature

-15 °C / +55 °C

Ambient operating temperature with heater

-25 °C / +55 °C

  • Brand: FAAC
