faac automatic bollard j200 ha h600 116500

SKU: 116500

€3,275.46VAT INCLUDED

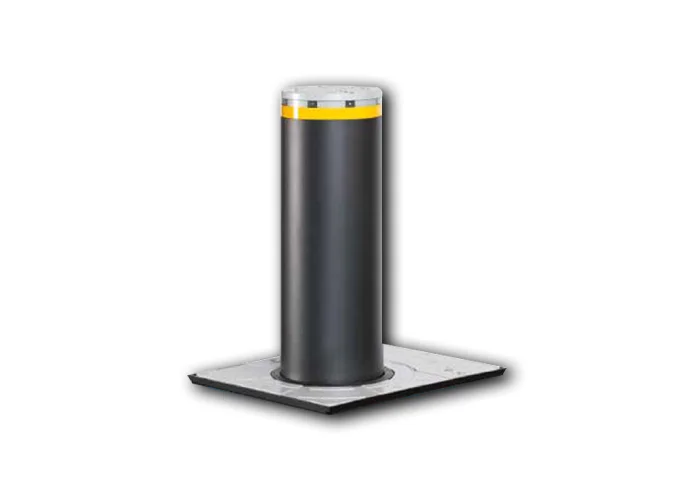

FAAC - AUTOMATIC BOLLARD FOR RESIDENTIAL AREAS 230W.

-  HEIGHT 600MM
-  EASY TRANSPORT, STORAGE AND INSTALLATION
-  DOES NOT REQUIRE THE LAYING  OF A PIT
-  HYDRAULIC ACTUATOR

THE PRODUCT IS EQUIPPED WITH:

- 6 MM THICK STEEL CYLINDER WITH CATAPHORESIS TREATMENT AND PAINTED
- POWDER COATING METALLISED DARK GREY COLOUR RAL7021
- HYDRAULIC LOCK IN HIGH POSITION WITH SPECIAL RELEASE KEY SUPPLIED
- SUPPORT STRUCTURE TO BE CEMENTED WITH CATAPHORESIS TREATMENT.

- ARTICLE ON ORDER, AVAILABILITY 1-2 WEEKS.


FAAC J200 HA H600
116500




Actuator type

Hydraulic actuator

Cylinder height from ground

600 mm

Cylinder diameter

200 mm

Cylinder treatment type

Cataphoresis and RAL 7021 metallic dark grey polyester powder coating



Reflective band height

25 mm

Standard reflective band colour

Orange

Climbing time

~5 s (*)

Descent time

~7 s (*)

Emergency lowering device

YES (optional)

Emergency descent time

~7 s (*)

Lifting obstacle detection

YES (optional)

Unlocking device

YES

Mains supply voltage

220-240V ~ 50/60Hz

Maximum power

230 W (*)

Hydraulic unit degree of protection

IP67

Type of use

Residential use

Ambient operating temperature

-15 °C / +55 °C

Ambient heater operating temperature

-25 °C / +55 °C

Load class (EN 124)

C250 (25t)

Total weight

90 Kg

  • Brand: FAAC
