FAAC - AUTOMATIC BARRIER WITHOUT BONNET B680H 24V
MAX ROD LENGTH: 2 - 8 m
OPENING TIME 1,5 - 6 s
FREQUENCY OF USE: CONTINUOUS USE
- 2,000,000 CYCLES THANKS TO THE BRUSHLESS + OLEODYNAMIC SYSTEM AND TO THE SPRINGS WITH UNLIMITED LIFE.
- DETACHABLE BONNET, AVAILABLE IN 4 COLORS OR STAINLESS STEEL.
- EXTREME LOGISTIC OPTIMIZATION: A SINGLE BARRIER MODEL FOR ALL LENGTHS.

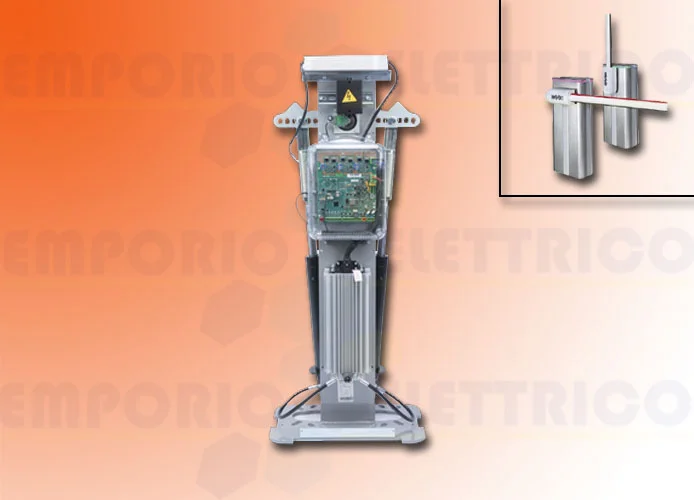

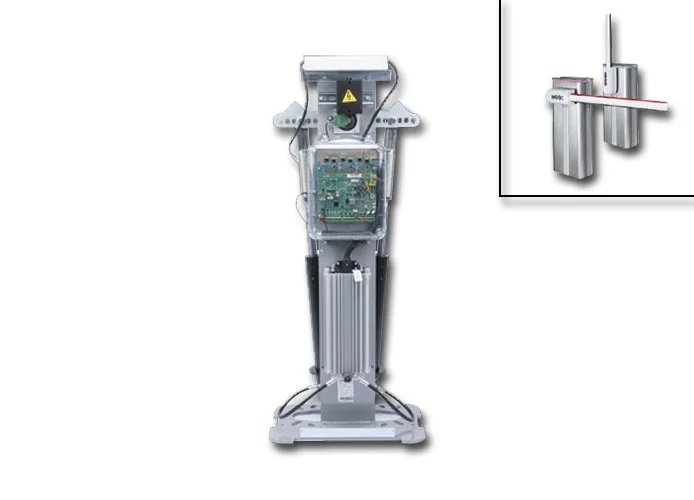

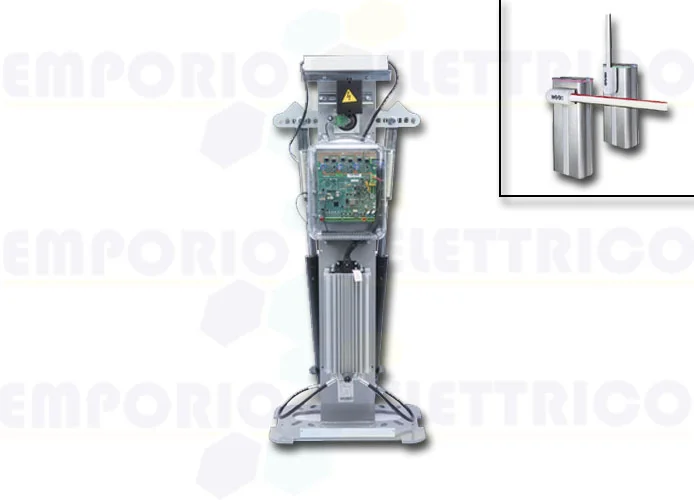

AUTOMATIC BARRIER WITHOUT BONNET B680H 104680
24V DC
INCLUDES: BARRIER UPRIGHT WITH ELECTRONIC EQUIPMENT AND
ABSOLUTE ENCODER, OIL-HYDRAULIC SYSTEM FOR MOTION TRANSMISSION, INSTALLATION ACCESSORIES, 1 TRIANGULAR RELEASE KEY
NOT INCLUDED: SECURING POCKET, BALANCED SPRING (SOLD JOINTLY WITH ANOTHER CODE) AND BONNET.

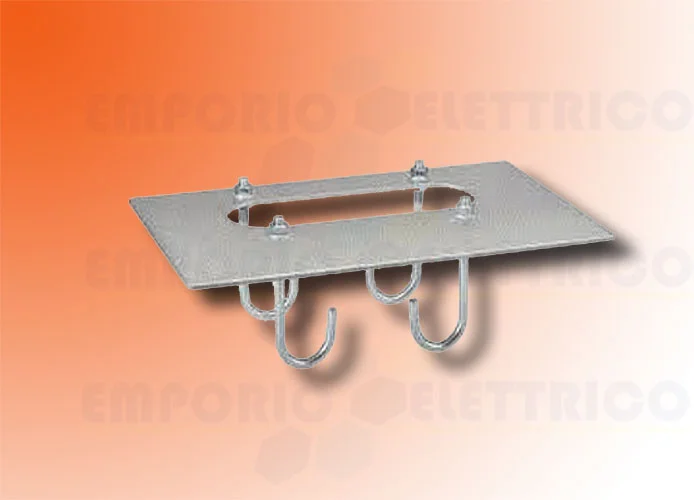

ROD, BONNET AND FOUNDATION PLATE ARE NOT INCLUDEDDIMENSIONS AND TECHNICAL CHARACTERISTICS
Model B680H
Switching mains power supply voltage: 100 ÷ 240V~ 50/60 Hz
Brushless Electric motor 36V
Motor rotation speed 1.000 ÷ 6.000 rpm
Max power 240 W
Motor-pump unit capacity 3,2 lpm
Material type Steel
Type of treatment 100 microns anticorrosive primer + Painted in polyester or stainless steel bonnet
Encoder Absolute magnetic encoder
Slowdown type Electronic - via encoder
Type of rod Round
Operating ambient temperature -20°C ÷ +55°C
Degree of protection IP56 (TÜV certificate)
Weight 85 Kg (65 Kg the upright + 20 Kg bonnet)
Type of oil FAAC HP OIL
Dimensions (WxDxH) 469 x 279 x 1100 mm
Max rod length 2 ÷ 8 m
Opening time 1,5 s (90° - 2m) - 6 s (90° - 8m)
Frequency of use 100%
Electronic equipment E680
