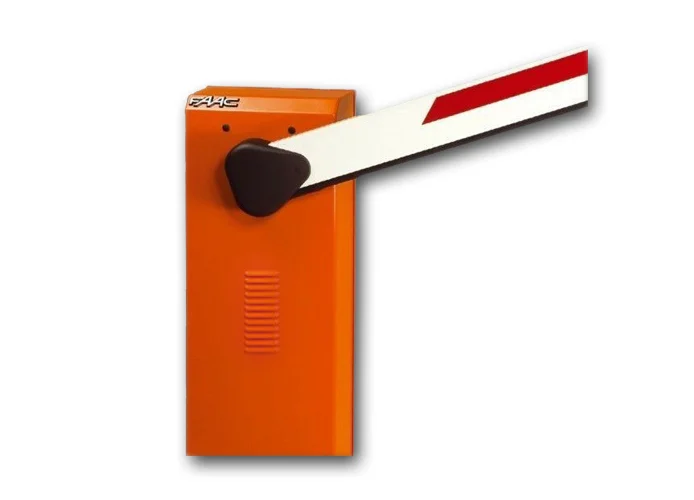

FAAC - 620 STANDARD AND AUTOMATIC BARRIER
LEFT ARTICULATED VERSION
VERSION FOR (BEAM IS NOT INCLUDED):
- 620 RECTANGULAR ARTICULATED BEAM, LENGTH 2.825 ÷ 3.815 mm (THE HEIGHT BETWEEN FLOOR AND CEILING - 1125 mm = 1315 ÷ 1814 mm)
- 620 RECTANGULAR ARTICULATED BEAM, LENGTH 1.825 ÷ 2.815 mm (THE HEIGHT BETWEEN FLOOR AND CEILING - 1125 mm = 1815 ÷ 2815 mm)
OPENING TIME 3,5 S
FREQUENCY OF USE 70%
- PATENTED ELECTRONIC SLOWDOWN AND SIGNALING OF THE BARRIER CONDITION TO TRAFFIC MANAGEMENT DEVICES
- IDEAL FOR INTENSIVE AND CONTINUOUS TRAFFIC
- INTEGRATED DETECTOR WITH 2 INDIPENDENT CHANNELS AND 111 PRESET LOGICS
STANDARD LEFT ARTICULATED 620 AUTOMATIC BARRIER 1047048
230V AC
INCLUDES: BARRIER BODY - FOR RECTANGULAR ARTICULATED BEAM,OIL-HYDRAULIC SYSTEM FOR MOTION TRANSMISSIONCOMPLETE WITH BALANCED SPRING, 624BLD ELECTRONIC CARD,INSTALLATION ACCESSORIES, 1 TRIANGULAR RELEASE KEYBEAM AND FOUNDATION PLATE ARE NOT INCLUDED
