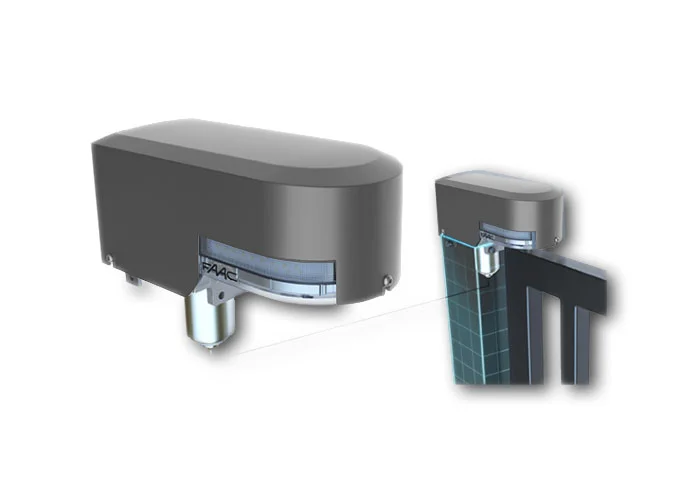

FAAC - 24 V S2500I ELECTROMECHANICAL ACTUATOR FOR SWING GATES.
MODERN DESIGN, INTEGRATED FLASHING LIGHT, INTEGRATED ADJUSTABLE MECHANICAL STOPS TO DEFINE THE END STOP POINTS ON OPENING AND CLOSING (OPTIONAL).
MAX. LEAF WIDTH: 2 - 2.5 M
MAXIMUM LEAF WEIGHT: 250 KG
IT INCLUDES: ELECTROMECHANICAL ACTUATOR 104250, ACTUATOR-HINGE FASTENERS 490250, ONE COVER 416250 (RAL 7021, DARK GREY), ONE GREASE PACK AND ONE RELEASE KEY
S2500I HINGE INCLUDES: UPPER HINGE CONSISTING OF PLATE, GEAR, FIXINGS TO THE PILLAR, JOINT AND BUSHING FOR CONNECTION TO THE DOOR, 2 INTEGRATED LED FLASHING LIGHTS AND RELEASE LOCK
THE OPERATOR IS COMPATIBLE WITH FAAC E124 ELECTRONIC BOARD, WITH FW VERSION 4.0 OR LATER VERSIONS
ELECTROMECHANICAL ACTUATOR FOR SWING GATES
MODEL S2500I 104250
24V
TECHNICAL DETAILS
Mains voltage: 220-240V~ 50/60 Hz
Electric motor: With brushes 24V
Max power: 40W
Max torque: 320Nm
Max. angular speed: 10°/s
Max door weight: 250 Kg
Max leaf opening angle: 165°.
Operating ambient temperature: -20°C ÷ + 55°C
Degree of protection: IP X4
Weight: 7.9 Kg (actuator) - 3.3 Kg (hinge) - 1.8 Kg (cover)
Dimensions (WxDxH): 340 x 160 x 150 mm
Electronic equipment: not included
Integrated mechanical stops on opening and closing: optional
Continuous use time (ROT): Continuous at 55°C
Encoder: Absolute Magnetic BUS
Max leaf width: 2m (2.5m with electric lock)
Size of square section pillar: 100×100, 120×120, 150×150 mm
