faac 24v automatic barrier b614 104614

SKU: 104614

€1,511.00  €906.60VAT INCLUDED

FAAC - 24V AUTOMATIC BARRIER

- BEAM LENGTH UP TO 5 M (NOT INCLUDED)
- OPENING TIME: <2 S (80° WITH BEAM UP TO 3 M)
- FREQUENCY OF USE: CONTINUOUS USE

- MAXIMUM ANTI-CRUSHING SAFETY AND ENGINE WITH INTEGRATED ENCODER
- SPEED ADJUSTMENT AND MOVEMENT FLUIDITY
​-INTEGRATED ELECTRONIC EQUIPMENT IN THE TOP OF EASY ACCESS AND INTUITIVE PROGRAMMING



AUTOMATIC BARRIER     B614
104614
24V DC

INCLUDES: BARRIER BODY, OIL-HYDRAULIC SYSTEM FOR MOTION TRANSMISSION, ELECTRONIC BOARD, INSTALLATION ACCESSORIES, 1 TRIANGULAR RELEASE KEY

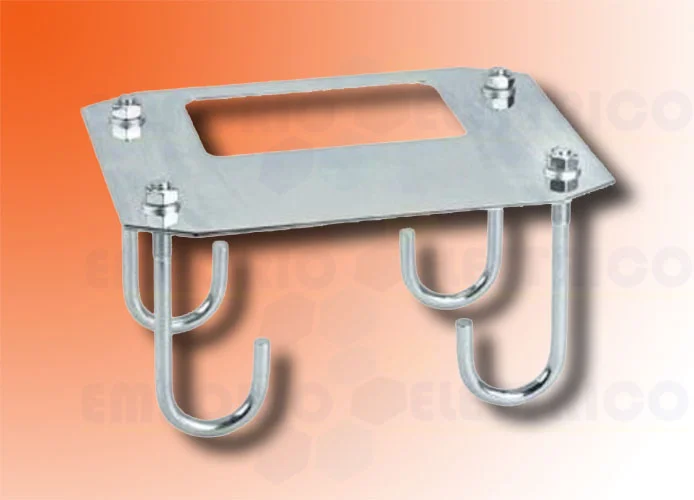

BEAM AND FOUNDATION PLATE ARE NOT INCLUDED

TECHNICAL DETAILS:

- POWER SUPPLY: 220-240V ~ 50/60 HZ
- ELECTRIC MOTOR: WITH BRUSHES 24V
- MAX POWER: 165 W
- MAX TORQUE: 300 NM - 63 NM (SPUNTO - 45°)
- TYPE OF MATERIAL: STEEL
- TREATMENT TYPE OF GALVANIZATION: 15 μm THICKNESS + POLYESTER POWDER COATING
- INCREMENTAL ENCODER: INTEGRATED IN THE MOTOR
- TYPE OF ELECTRONIC + MECHANICAL SLOWDOWN
- RECTANGULAR AND ROUND ROD
- OPERATING TEMPERATURE: -20°C ÷ +55°C
- DEGREE OF PROTECTION: IP55
- WEIGHT: 40 KG
- OPENING TIME: < 2 S (80°- 3M)
- USE FREQUENCY: 100%

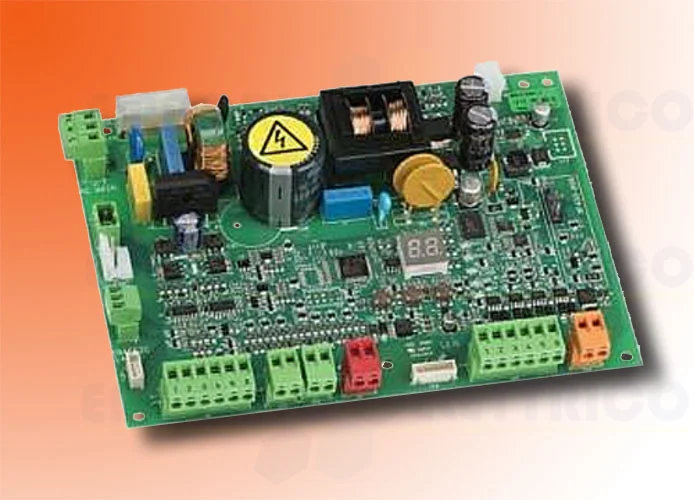

- ELECTRONIC EQUIPMENT: E614 INTEGRATED

  • Brand: FAAC
