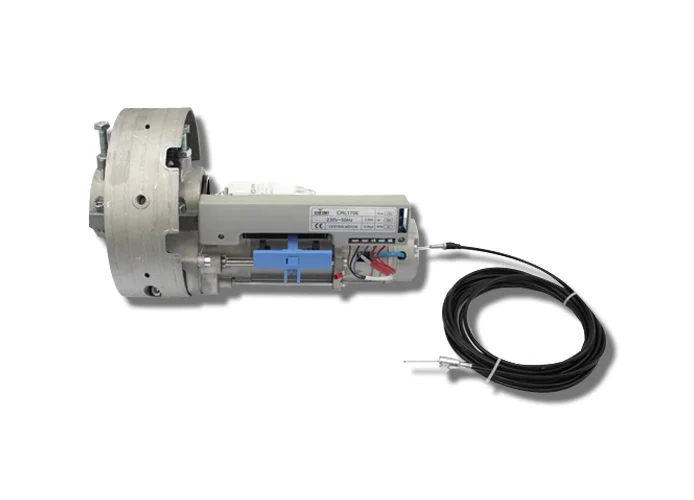

CARDIN - 230V SELF-LOCKING GEARMOTOR FOR ROLLING SHUTTERS WITH A LIFTING POWER OF 180KG
RELIABLE AND PRECISE, THANKS TO THE LIMIT SWITCHES INTEGRATED IN THE ELECTRIC BRAKE UNIT AS STANDARD, APPLIES TO ALL ROLLING SHUTTERS WITH A 76MM SHAFT DIAMETER AND 240MM CROWN WHEELS
MAXIMUM ROLLING SHUTTERS HEIGHT 6M.
GEARMOTOR FOR ROLLING SHUTTERS
CRL 180 E
230V
TECHNICAL FEATURES:
MOTOR POWER SUPPLY: 230Vac
FREQUENCY: 50/60Hz
NOMINAL CURRENT ABSORBED: 2,85A
ABSORBED POWER: 650W
TORQUE: 210Nm
REDUCER SPEED: 9.5 rpm
SHAFT: Ø76
CROWN: Ø240
