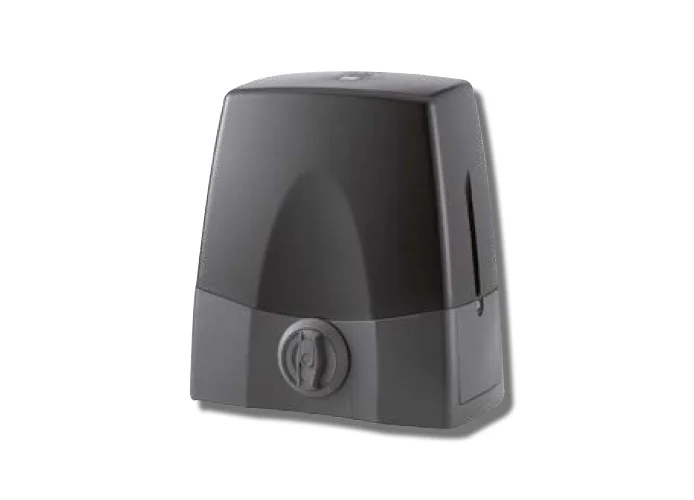

cardin Pro SL series gearmotor with encoder and batteries 24v slx1524cb
€1,102.00 €639.16 |
|---|
CARDIN - SELF-LOCKING GEAR MOTOR CONTROLLED BY A MAGNETIC ENCODER FOR DOORS WEIGHING UP TO 1500KG
IT INCLUDES:
- ELECTRONIC PROGRAMMER
- 433 MHz FM RECEIVER
- REMOVABLE BATTERY CHARGER
- NiMH BATTERIES
THE MACHINE IS EQUIPPED WITH A SAFE AND RELIABLE MANUAL RELEASE SYSTEM FEATURING A CUSTOMISED KNOB
POWER SUPPLY: 230 V AC
FREQUENCY: 50 Hz
NOMINAL POWER ABSORPTION: 0.9 A
POWER CONSUMPTION: 200W
DUTY CYCLE: 70%
TRANSVERSAL SPEED: 9.5 m/min
MAX TORQUE: 74 Nm
OPERATING TEMPERATURE: -20°C to +50°C
PROTECTION RATING: IP44
IT INCLUDES:
- ELECTRONIC PROGRAMMER
- 433 MHz FM RECEIVER
- REMOVABLE BATTERY CHARGER
- NiMH BATTERIES
THE MACHINE IS EQUIPPED WITH A SAFE AND RELIABLE MANUAL RELEASE SYSTEM FEATURING A CUSTOMISED KNOB
SLIDING GATE GEAR MOTOR
SLX1524CB
24V
TECHNICAL SPECIFICATIONS:SLX1524CB
24V
POWER SUPPLY: 230 V AC
FREQUENCY: 50 Hz
NOMINAL POWER ABSORPTION: 0.9 A
POWER CONSUMPTION: 200W
DUTY CYCLE: 70%
TRANSVERSAL SPEED: 9.5 m/min
MAX TORQUE: 74 Nm
OPERATING TEMPERATURE: -20°C to +50°C
PROTECTION RATING: IP44
