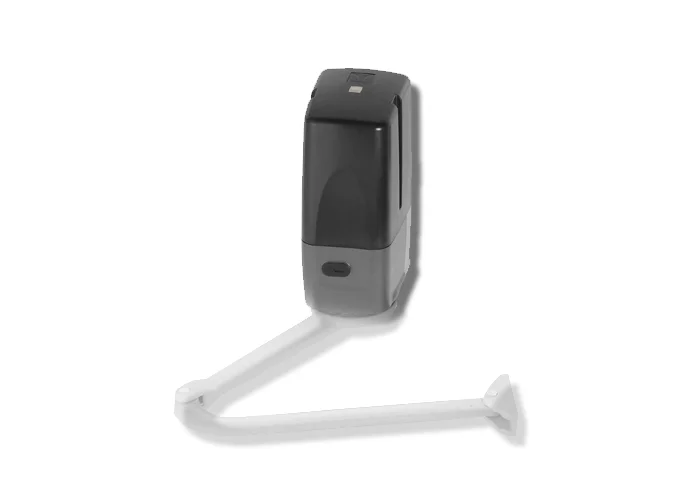

CARDIN - 24V MASTER SELF-LOCKING ELECTROMECHANICAL GEARMOTOR CONTROLLED BY ENCODER
IT INCLUDES:
- ELECTRONIC PROGRAMMER
- 433MHZ FM RECEIVER
- REMOVABLE BATTERY CHARGER
- NIMH BATTERIES
THE EQUIPMENT IS PARTICULARLY SUITABLE FOR GATES WITH LARGE PILLARS WITH INTERNAL HINGES IN RELATION TO THE PILLAR WIRE. ALSO IDEAL FOR GATES WITH LEAVES UP TO 3.5 METRES LONG (UP TO 5M IN THE ARTICULATED ARM VERSION, ELECTRIC LOCK), MAX. WEIGHT 400KG.
MANUAL RELEASE IS IMPLEMENTED AFTER REMOVAL OF THE KEY HATCH USING THE HEXAGONAL KEY PROVIDED.
ACTUATOR ARM TO BE ORDERED SEPARATELY.
GEARMOTOR FOR SWING GATES
BL3924MCB
24V
TECHNICAL FEATURES:
POWER SUPPLY: 24Vdc
NOMINAL ABSORBED CURRENT: 2A
ABSORBED POWER : 50W
WORKING INTERMITTENCE: 70%
90° OPENING TIME: 20sec (16sec WITH USE OF STRAIGHT ARM)
MAXIMUM OPENING: 130°
MAX. torque: 300Nm
DEGREE OF PROTECTION: IP44
