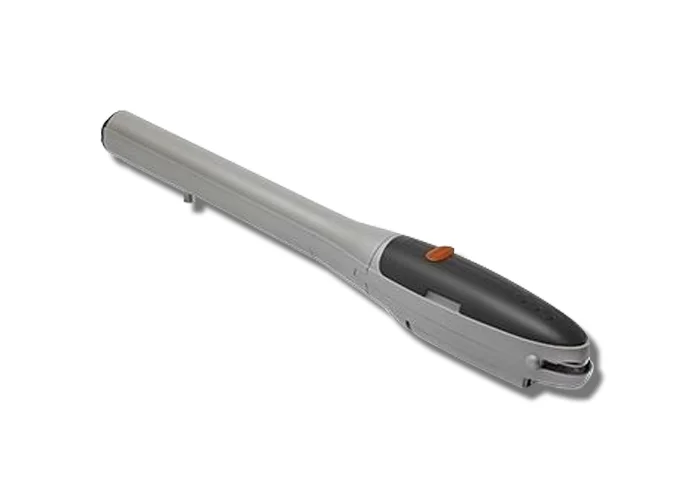

CARDIN - 24V ELECTROMECHANICAL SELF-LOCKING ACTUATOR CONTROLLED BY ENCODER, FOR LEAVES OF MAX. 3.5M (4M WITH ELECTRIC LOCK) AND 400KG
THE REDUCTION SYSTEM GUARANTEES THE LOCKING OF THE LEAF WHEN CLOSING
ELECTRONIC PROGRAMMER TO BE ORDERED SEPARATELY CC242ETOPCB/CC242EXTOPCB.
GEARMOTOR FOR SWING GATES
BLESOL
24V
TECHNICAL FEATURES:
POWER SUPPLY: 24Vdc
ABSORPTION: 2A
ABSORBED POWER: 60W
PUSH: 2000N
SCREW THROW: 500mm
WORKING INTERMITTENCE: 70%
90° OPENING TIME: 20sec
MAXIMUM OPENING: 100°
DEGREE OF PROTECTION: IP44
