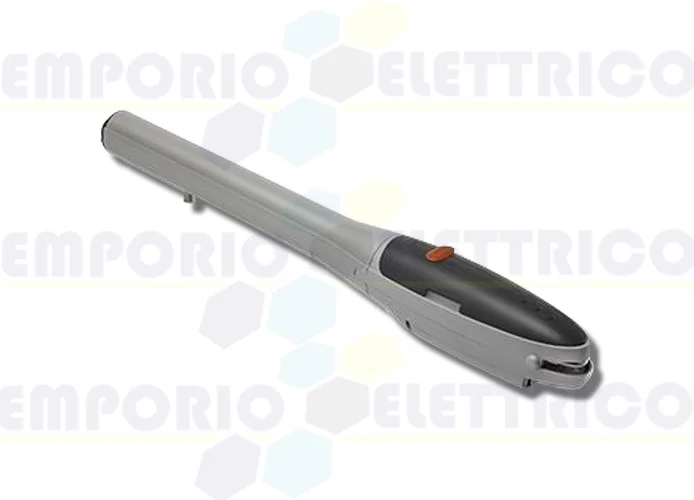

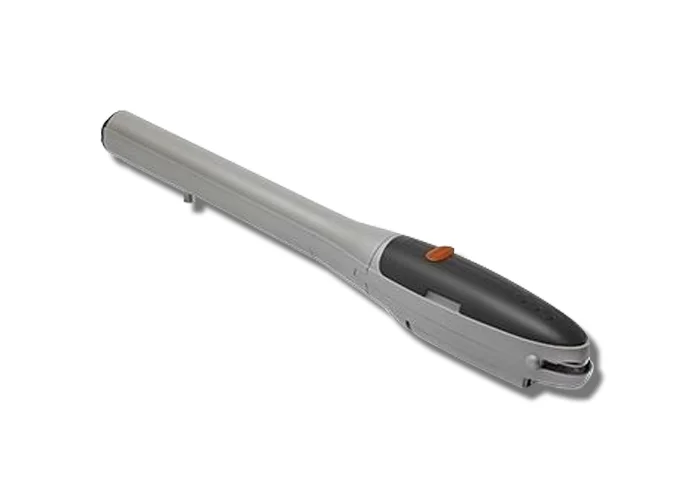

CARDIN - 24V ELECTROMECHANICAL SELF-LOCKING ACTUATOR CONTROLLED BY ENCODER, FOR LEAVES OF MAX. 2.5M AND 200KG
THE REDUCTION SYSTEM GUARANTEES THE LOCKING OF THE LEAF WHEN CLOSING
ELECTRONIC PROGRAMMER TO BE ORDERED SEPARATELY CC242ETOPCB/CC242EXTOPCB
GEARMOTOR FOR SWING GATES
BLEGOS
24V
TECHNICAL FEATURES:
POWER SUPPLY: 24Vdc
ABSORPTION: 2A
ABSORBED POWER: 60W
PUSH: 1500N
SCREW STROKE: 350mm
WORKING INTERMITTENCE: 70%
90° OPENING TIME: 15sec
MAXIMUM OPENING: 110°
DEGREE OF PROTECTION: IP44
