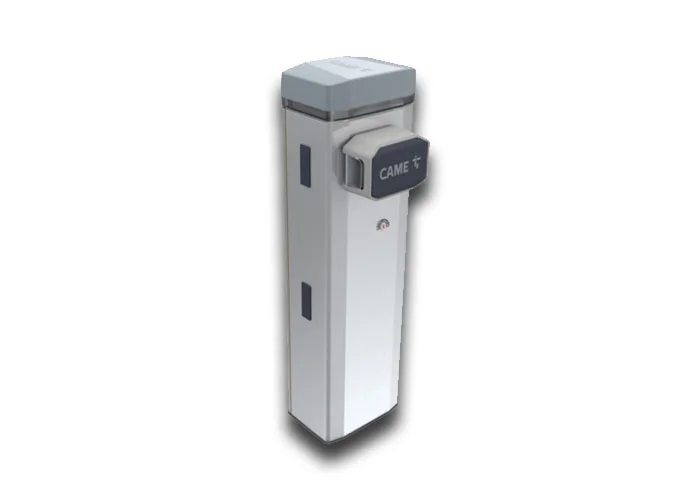

CAME - AUTOMATIC BARRIER WITH 24V DC IRREVERSIBLE GEARMOTOR WITH ENCODER; GALVANISED AND SATIN-FINISHED AISI 304 STEEL CABINET WITH PROVISION FOR ACCESSORIES
- 24V DC GEARMOTOR WITH ADVANCED SPEED TECHNOLOGY
- TESTED FOR INTENSIVE USE OF 350 CYCLES/HOUR WITH MCBF 3 MILLION CYCLES
- ELECTRONIC BOARD WITH DISPLAY, CONNECT TECHNOLOGY AND INPUTS FOR CXN BUS ACCESSORIES
- ACCESSORIES CAN BE INTEGRATED DIRECTLY INTO THE CABINET
- HIGH-VISIBILITY RED/GREEN SIGNAL LEDS ON THE CROWN AND ON BOTH SIDES OF THE BAR
- CAN BE INTEGRATED WITH THIRD-PARTY SYSTEM VIA MODBUS PROTOCOL
BALANCING SPRING INCLUDED
BUILT-IN CONTROL PANEL
GGT40AX6
803BB-0260
24V DC
TECHNICAL DETAILS:
MAX. PASSAGE WIDTH: 4 METERS
DEGREE OF PROTECTION: IP54
POWER SUPPLY: 230V AC - 50/60 Hz
MOTOR POWER SUPPLY: 24V DC
THRUST: 240W
OPENING TIME AT 90°: 2 ÷ 6 SECONDS
CYCLES/HOUR: 350
OPERATING TEMPERATURE: (C°) -20° / +55°C (- 40 WITH CODE 001PSRT01)
