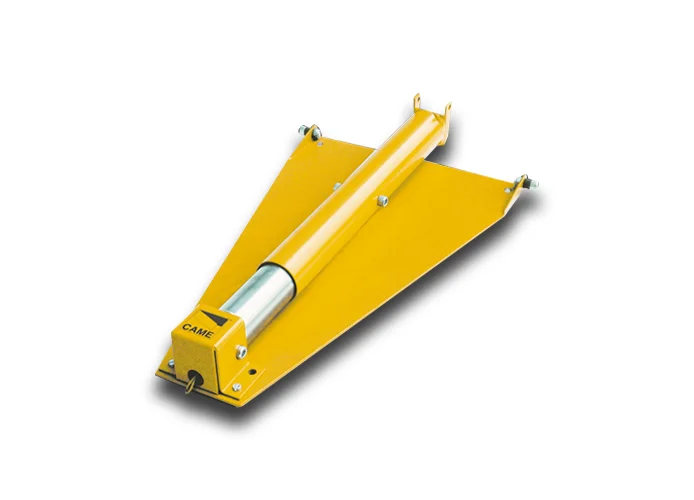

CAME - PARKING BARRIERS WITH IRREVERSIBLE 24V DC GEARMOTOR, COMPLETE WITH FIXING PLATE.
- RADIO-CONTROLLED SOLUTION FOR RESERVING PARKING SPACES
- SIMPLE AND FUNCTIONAL FIXING BASE
- EMERGENCY OPERATION IN THE EVENT OF A BLACKOUT
- SAFETY GUARANTEED BY THE AMPEROMETRIC DEVICE FOR OBSTACLE DETECTION AND LIMIT SWITCH MANAGEMENT
- AVAILABLE IN TWO MODELS, SMALL (BY COMBINING 001ARK1) AND LARGE (BY COMBINING 001ARK2)
- MADE OF GALVANISED STEEL AND PAINTED RAL 1028 WITH TEXTURED FINISH
- SUITABLE FOR RESIDENTIAL USE AND PUBLIC SPACES
001ARK1 AND 001ARK2 ARE NOT INCLUDED IN THE PACKAGE
CENTRAL SAFETY PIN NOT INCLUDED, AVAILABLE ON PRODUCT ARK1 AND ARK2
MAX. PARKING SPACE:
001UNIP + 001ARK1= 2 METRES
001UNIP + 001ARK2= 2.45 METRES
PARKING BARRIER
001UNIP UNIP
TECHNICAL DETAILS:
DEGREE OF PROTECTION (IP): 54
POWER SUPPLY (V - 50/60 HZ): 230 AC
MOTOR POWER SUPPLY (V): 24 AC
ABSORPTION (A): 1.7 MAX.
POWER (W): 20
INTERMITTENCE/WORK (%): INTENSIVE USE
CRUSH RESISTANCE (KG/CM²): 2.5
OPERATING TEMPERATURE (°C): -20 ÷ +55
