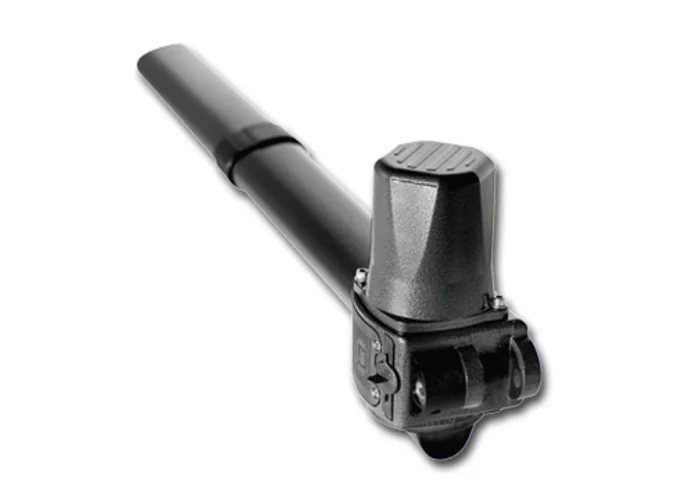

came krono 230v right-hand gearmotor 001kr310d kr310d

SKU: 001KR310D

€525.00  €391.07VAT INCLUDED
0 days 23 hours 2 minutes remaining for expedited shipping

Maximum quantity of this item to benefit from Speedy delivery: 1


CAME - 230V AC RIGHT-HAND IRREVERSIBLE GEARMOTOR FOR SWING GATES OF UP TO 3 MT PER LEAF WITH MICRO-SWITCHES TO STOP THE LEAF

TO ESTABLISH THE RIGHT OR LEFT MOTOR, THE RULE IS TO LOOK FROM THE INSIDE OF THE PROPERTY TO THE OUTSIDE, AS IF YOU WERE GOING OUT.

- ADJUSTABLE OPENING/CLOSING MICROSWITCHES
- BUILT-IN EMERGENCY RELEASE LEVER

DEGREE OF PROTECTION: IP54
90° OPERATING TIME: 22 SECONDS
POWER SUPPLY: 230V AC





001KR310D        KR310D
230V AC



Type
KRONO 3
KRONO 5
Degree of protection
IP54
Power supply
230V 50/60 Hz
Motor power supply
230V 50/60 Hz
Absorption
1,1A
Nominal power
130W
Work intermittence
30%
Adjustable push
400-3000N
Motor thermoprotection
150°C
Opening time (90°)
22s
34s
Operating temperature
-20°C min / 55°C max





Type Max. door width Max. door weight
KR300D
KR300S
KR310D
KR310S
2 m
800 kg
2,5 m
600 kg
3 m
400 kg
KR510D
KR510S
2 m
1000 kg
2,5 m
600 kg
3 m
400 kg
4 m
500 kg
5 m
400 kg



  • Brand: CAME
