CAME - KIT AUTOMATION ATI 001U-7084, TESTED ACCORDING TO THE NORMS EN 12453-EN 12445
COMPLETE SYSTEM FOR GATES WITH TWO SWING-LEAVES UP TO 3 MT PER GATE LEAF, WITH GEARMOTOR 230V AC
KIT ATI
001U-7084 U-7084
230V AC

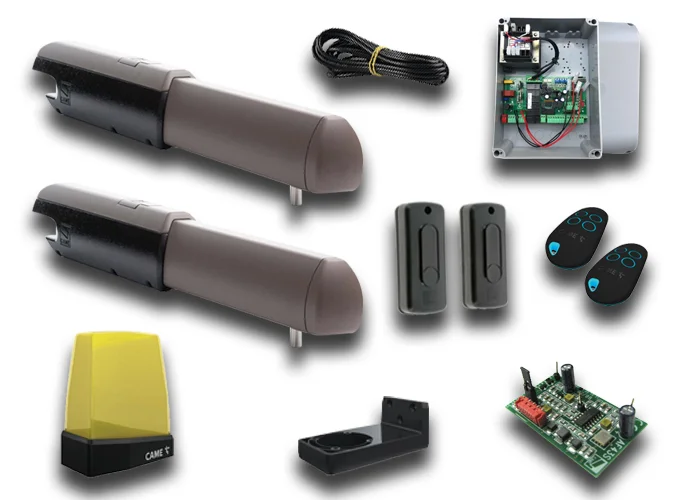

IT INCLUDES:
- 2 A3000A: Irreversible gearmotors with opening and closing limit-switch micro-switches
- 1 ZA3P: Multifunction control panel for two-leaved swing gates, with limit-switch control and slow-down speed adjusting
- 1 AF43S: Plug-in radio-frequency control card, snap-in 433,92 MHz
- 2 806TS-0270: TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: Antenna cable 5 Mt
- 1 DIR10: Pair of 12 - 24 V AC - DC outdoor photocells - range 10 Mt
- 1 806LA-0030: Led flashing light with power supply from 24 v ac - dc up to 230 v ac with yellow dome, double built-in antenna (433.92 mhz and 868.35 mhz)
- 1 806LA-0040: Wall-fastening base for krx flashing lights
- 1 Gate plate
