AUTOMATION KIT CAME FROG-A24 type 1
TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 3,5 m PER LEAF
WITH 24V DC MOTOR
001FROG-A24 type 1 24V DC

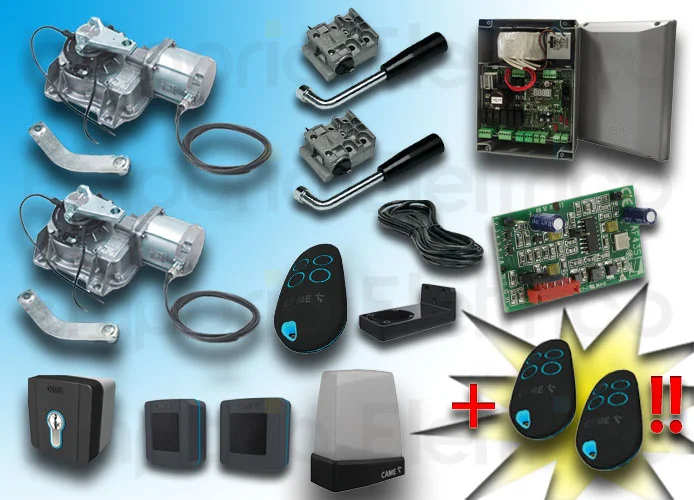

INCLUDES:
- 2 FROG-A24 Irreversible gearmotors 24V dc for swing gates measuring up to 3.5 m per leaf, with adjustable closing leaf-stop
- 2 A4364 Release devices with lever key
- 1 801QA-0050 Control panel for swing gates with two leaves (ex ZL19N)
- 1 AF43S Plug-in radio-frequency control card 433,92 MHz
- 3 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58 Antenna cable 5 mt
- 1 SET-E Surface-mounted key-switch selector with aluminum alloy casing and DIN lock cylinder
- 1 806TF-0080 Pair of adjustable photocells with synchronised infrared ray for outdoor use. range: 30 metres (ex code 001delta-se / 001delta-e)
- 1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 806LA-0040 Wall-fastening base for krx flashing lights
- 1 Gate plate
FOUNDATION BOXES NOT INCLUDED
