came kit automation 001frog-a frog-a 230v type 4A

SKU: EMPA0004G

€3,024.40  €2,206.39VAT INCLUDED

AUTOMATION KIT CAME FROG-A  type 4A

TESTED ACCORDING TO STANDARDS EN 12453-EN 12445

COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 3,5 m PER LEAF
WITH 230 Vac MOTOR




001FROG-A type 4A    230V AC

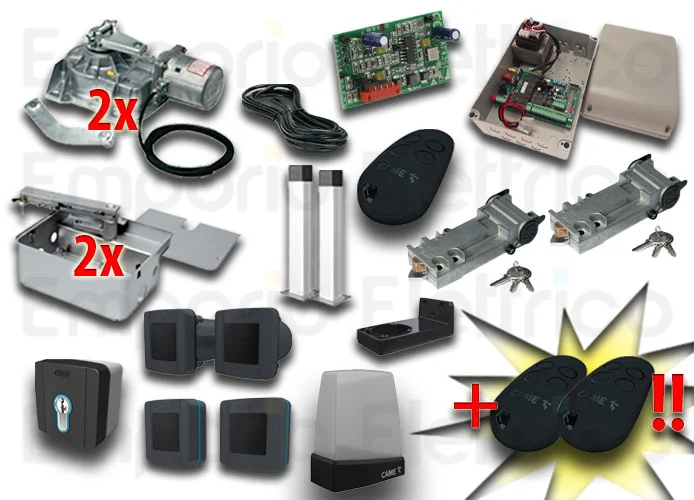

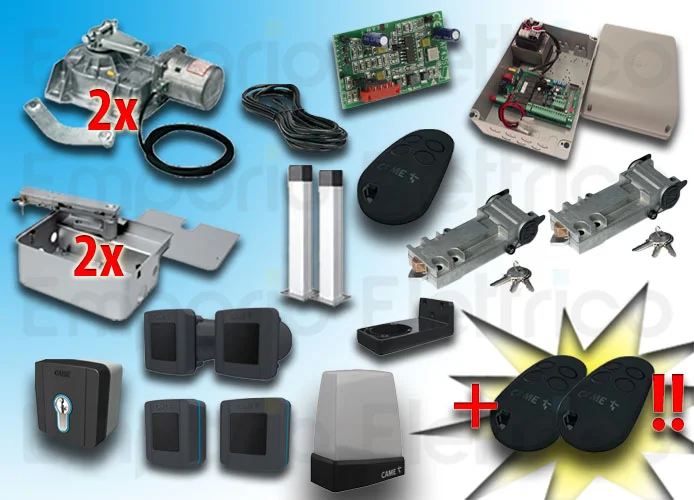

INCLUDES:

- 2  FROG-A Irreversible gear motors for swing gates measuring up to 3.5 m per leaf, with adjustable closing leaf-stop
- 2  FROG-CFNI Foundation boxes made of AISI 304 steel, with release latching lever, gate
fastening brace and screw for adjusting the opening limit point.
- 2  801XA-0030 Release devices with customized key and EURO-DIN cylinder
- 1  ZA3P  Multifunction control panel for swing gates with two leaves
- 1  AF43S Plug-in radio-frequency control card 433,92 MHz
-  3 806TS-0310 4-channel transmitter with new fixed code encoding at 433.92 mhz top44fgn

- 1  TOP-RG58  Antenna cable 5 mt
-  1 806TF-0070 Pair of adjustable photocells with synchronised infrared ray for built-in installation. range: 30 metres (ex code 001delta-si / 001delta-i)
- 2  DOC-L  Anodized aluminum with natural finish post H=0,5 MT
-  1  806SL-0050 Surface-mounted key-switch selector with din lock cylinder, blue retroillumination blu. cover grey ral7024

-  1  806TF-0080 Pair of adjustable photocells with synchronised infrared ray for outdoor use. range: 30 metres (ex code 001delta-se 001delta-e)
-  1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
-  1 806LA-0040 Wall-fastening base for krx flashing lights
- 1  Gate plate

  • Brand: CAME
