came frog-ae automation kit 230v encoder 001u1920 u1920

SKU: 001U1920

€2,868.40  €1,893.14VAT INCLUDED

CAME - AUTOMATION KIT FROG-AE 001U1920, TESTED ACCORDING TO EN 12453-EN 12445 STANDARDS

COMPLETE SYSTEM FOR 2-LEAF SWING GATES UP TO 3,5 MT PER LEAF, WITH 230V AC MOTOR



KIT FROG-AE
001U1920       U1920
230V AC

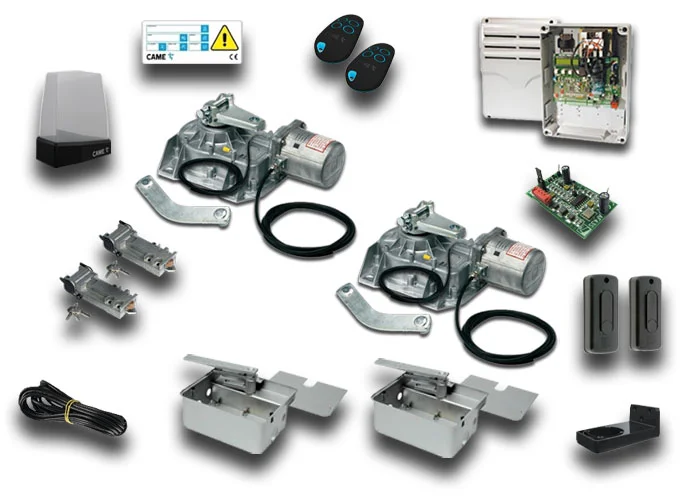

IT INCLUDES:
-  2 FROG-AE Irreversible gearmotors for swing gates of up to 3.5 Mt per leaf, with adjustable closing leaf-stop, with encoder, 230V AC
-  2 FROG-CFNI Foundation boxes made of AISI 304 steel, with release latching lever, gate
fastening brace and screw for adjusting the opening limit point
-  2
801XA-0030 Release devices with customized key and EURO-DIN cylinder
-  1 ZM3E Multifunction control panel for swing gates with two leaves, graphic alerts display, self-diagnosing safety devices and on-board radio decoding
-  1 AF43S Plug-in radio-frequency control card 433,92 MHz
-  2 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz

-  1 TOP-RG58 Antenna cable
-  1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 Mt
-  1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome

-  1 806LA-0040 Wall-fastening base for krx flashing lights
-  1 Gate plate

  • Brand: CAME
