CAME - AUTOMATION KIT FAST70 001U1806FR, TESTED ACCORDING TO EN12453 - EN12445 STANDARDS
COMPLETE SYSTEM FOR 2-LEAF SWING GATES UP TO 2,3 MT PER LEAF, WITH 24 V DC MOTOR
FA7024CB
FA7024
KIT FAST70
001U1806FR U1806FR
24V DC

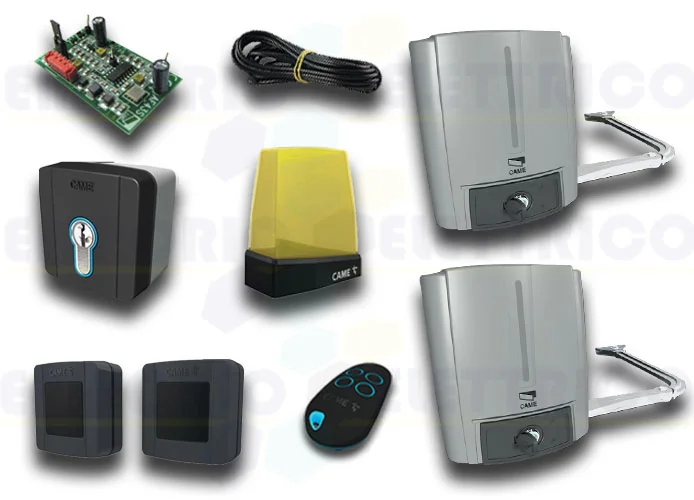

IT INCLUDES:
- 1 FA7024CB: Irreversible gearmotor with control board and functions display, on-board radio decoding and folding arm for swing gates, 24 Vdc
- 1 FA7024: Irreversible gearmotor with folding drive arm for swing gates measuring up to 2,3 Mt per leaf
- 1 AF43S: Plug-in radio-frequency control card
- 1 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: Antenna cable 5 Mt
- 1 SET-E: Surface-mounted key-switch selector with aluminium alloy casing and DIN lock cylinder
- 1 806TF-0080: Pair of surface-mounted 12-24 Vac-dc photocells with casing. Range 20 Mt
- 1 806LA-0030: Led flashing light with power supply from 24 Vac - dc up to 230 Vac with yellow dome, double built-in antenna (433.92 MHz and 868.35 MHz)
- 1 Gate plate
