CAME - AUTOMATION FAST70 001U1805FR, TESTED ACCORDING TO EN 12453-EN 12445 STANDARDS
COMPLETE SYSTEM FOR 2-LEAF SWING GATES UP TO 2,3 MT PER LEAF, WITH 24V DC MOTOR
FA7024CB
FA7024
KIT FAST70
001U1805FR U1805FR
24V DC

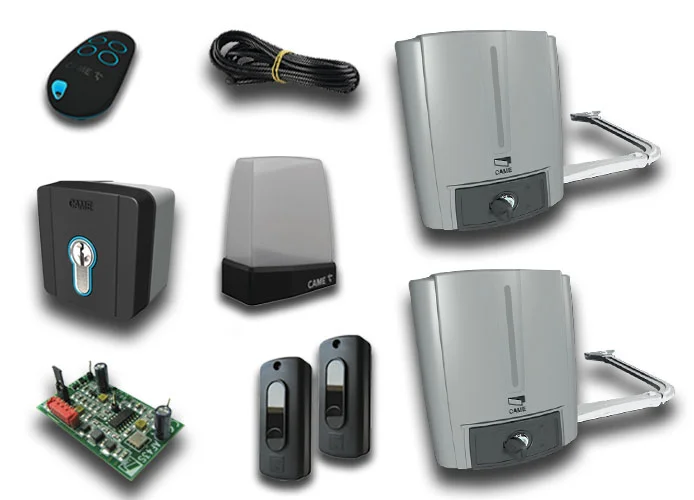

IT INCLUDES:
- 1 FA7024CB: Irreversible gearmotor with control board and functions display, on-board radio decoding and folding arm for swing gates, 24 Vdc
- 1 FA7024: Irreversible gearmotor with folding drive arm for swing gates measuring up to 2,3 Mt per leaf
- 1 AF43S: Plug-in radio-frequency control card 433,92 MHz
- 1 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: Antenna cable 5 Mt
- 1 806SL-0050 Surface-mounted key-switch selector with din lock cylinder, blue retroillumination blu. cover grey ral7024.
- 1 DIR10: Pair of 12-24 Vac-dc outdoor photocells
- 1 806LA-0020: Led flashing light with power supply from 24 Vac-dc up to 230 Vac, with double built-in antenna (433.92 MHz and 868.35 MHz), with white dome
- 1 Gate plate
