CAME - AUTOMATION KIT VER FOR 24V DC, FOR UP-AND-OVER AND SECTIONAL DOORS UP TO 9 M2
TRACTION FORCE 600N
8K01MV-006 VER06K02 (EX U4631)
24V DC

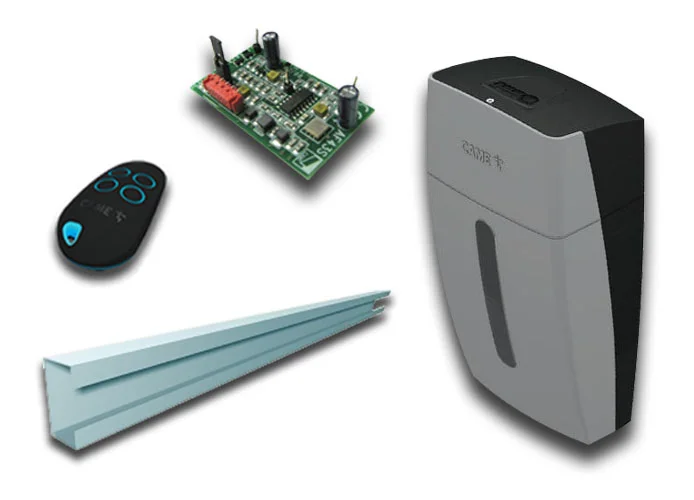

IT INCLUDES:
- 1 VER06DES 801MV-0050 Automated operator with built-in receiver and control panel, encoder, for sectional and overhead doors with spring counterweights, traction force 600N
- 1 chain guide L=3,02 mt in 3 pieces ( maximum height of the door: counterweights up-and-over door 2,4 mt - spring up-and-over door 2,25 mt - sectional door type A 2,1 mt - sectional door type B 2,2 mt )
- 1 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 AF43S control card 433,92 MHZ
- 1 Gate plate
