CAME - COMPLETE KIT FOR 2-LEAF SWING GATES WITH LEAVES UP TO 5 METERS LONG AND 400 KG IN WEIGHT
GEARMOTOR DESIGNED FOR CON C MAX APPLICATIONS UP TO 200 mm, WITH ENCODER
GEAR REDUCER WITH CONICAL COUPLE FOR A GREATER FLUIDITY OF MOVEMENT
RELEASE SYSTEM WITH REMOTE CONTROL POSSIBILITY
POWER SUPPLY: 24V DC
KIT ATS SERIES
8K01MP-026
24V DC

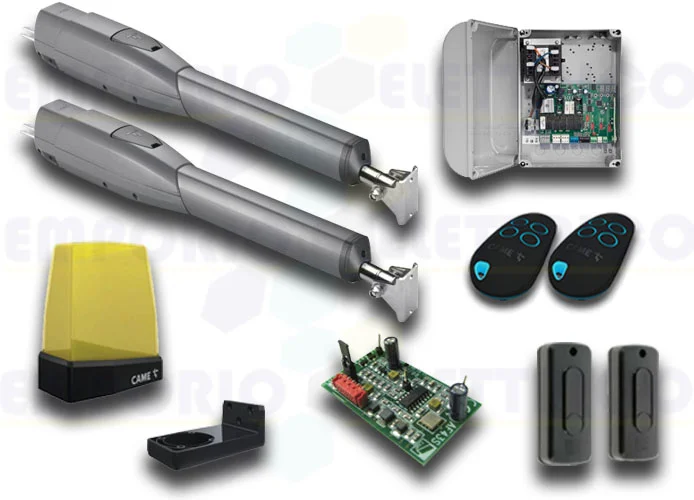

IT INCLUDES:
- 2 ATS50DGS 801MP-0080: Irreversible 24V telescopic gearmotors for swing gates with C max 200 mm with leaves up to 5 meters and 400 kg in weight
- 1 002ZL65: Control panel for one or two swing gates with programming display, built-in radio decoding and self-diagnosis of safety devices
- 1 001AF43S: Plug-in radio frequency card
- 2 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 001DIR10: Pair of outdoor photocells 12 - 24 V AC - DC. Range 10 meters
- 1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 806LA-0040 Wall-fastening base for krx flashing lights
- 1 Gate plate
