62020010 + 60090070 + 61800030 + 61800320
SYSTEM X1

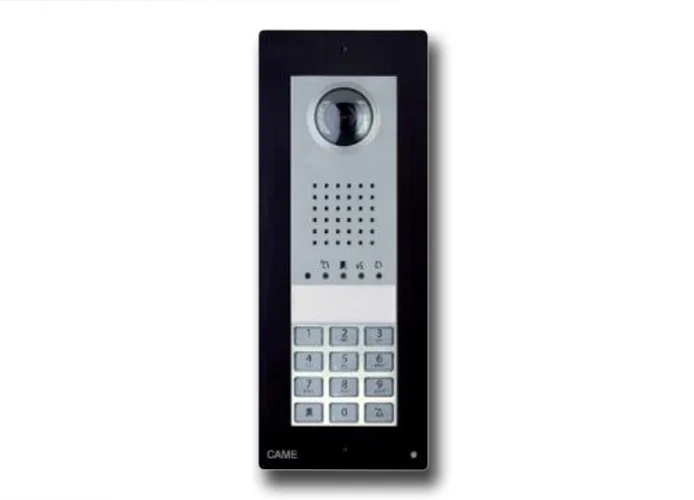

CAME BPT - COLOUR VIDEO ENTRY PANEL
CIRCUIT BOARD FOR X1 SYSTEM, MICROPHONE AND LOUDSPEAKER.
NTSC/PAL VIDEO CAMERA, RESOLUTION 680X512 PIXEL WITH BUILT-IN MICROPROCESSOR FOR DIGITAL SIGNAL PROCESSING, HORIZONTAL ANGLE OF APERTURE 100° WITH DIGITALLY-CONTROLLED ZOOM. CALLER ILLUMINATION USING 4 HIGH-EFFICIENCY LEDS.
PROTECTION RATING IP54.
DIMENSIONS (WXHXD): 99X254X25 MM.
ADJUSTMENT OF MICROPHONE/LOUDSPEAKER VOLUME AND DOOR LOCK RELEASE TIME. SIMPLE CONNECTION USING PRE-WIRED FLAT CABLES (SUPPLIED AS STANDARD) AND MINI USB CONNECTOR FOR PROGRAMMING
WITH SOFTWARE TOOL. LOCAL COMMAND FOR DOOR LOCK, INPUTS FOR DOOR LOCK RELEASE BUTTONS, DOOR STATUS SIGNALLING DEVICES, OUTPUT CONNECTOR FOR ACTIVATION OF EXTERNAL CAMERAS. BLUE LEDS (8) FOR BACKLIGHTING OF KEYS WITH NAME LABEL. LEDS FOR VISUAL CONTROL OF THE STATUS OF THE SYSTEM: RED "CALL CONNECTED" LED, GREEN "DOOR OPEN" LED, YELLOW "CALL IN PROGRESS" LED, BLUE "SYSTEM BUSY" LED.
ENIGMA VIDEO 001DC02ENIGMA
