CAME AUTOMATION KIT STYLO, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR 2-LEAF SWING UP TO 1.8 m PER LEAF
24V DC MOTOR
![](https://backoffice.emporio-elettrico.it/FCKeditorUserFiles/Came%20Manuals/EN%20Click%20here%20for%20Manual.jpg)
![](https://backoffice.emporio-elettrico.it/FCKeditorUserFiles/Icone%20per%20articoli/EN%20Pagina%20ricambi.webp)
KIT STYLO
001U8120FR U8120FR
24V DC

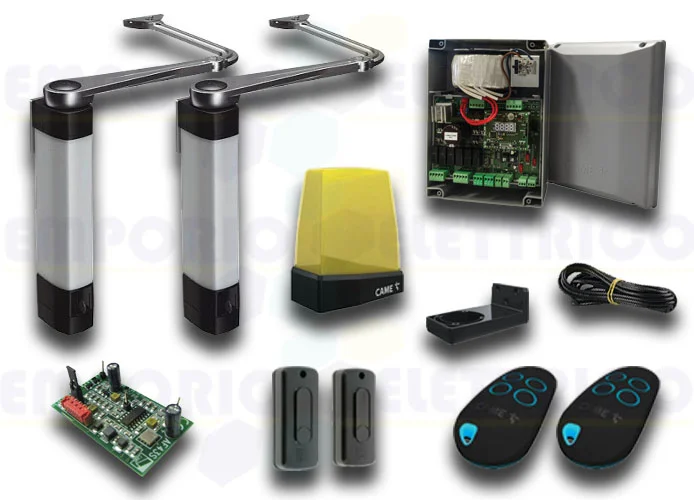

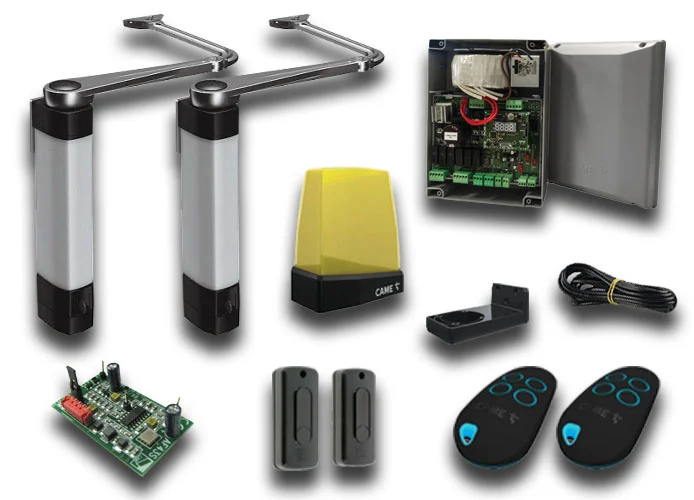

IT INCLUDES:
- 2 STYLO-ME Irreversible gearmotors with encoder for swing gates measuring up to 1.8 m in length per leaf
- 2 STYLO-BS Control panels for two-leaved swing gates with functions display, self-diagnosing safety devices and on-board radio decoding
- 1 801QA-0050: Multifunctional control panel for two-leaf gates 24V (ex 002zl92)
- 1 AF43S Plug-in radio-frequency control card 433,92 MHz
- 2 806TS-0270: TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 m.
- 1 TOP-RG58 antenna cable 5 m
- 1 806LA-0030: Led flashing light with power supply from 24 v ac - dc up to 230 v ac with yellow dome, double built-in antenna (433.92 mhz and 868.35 mhz)
- 1 806LA-0040: Wall-fastening base for krx flashing lights
- 1 Gate plate
