came automation kit frog-a 230v 001u1912ml u1912ml
SKU: 001U1912ML
€2,729.40 €1,992.46VAT INCLUDED
CAME - AUTOMATION KIT FOR SWING GATES WITH LEAVES UP TO 3.5 MT LONG AND 400 KG IN WEIGHT
230V AC MOTOR
KIT FROG-A
001U1912ML 1912ML
230V AC

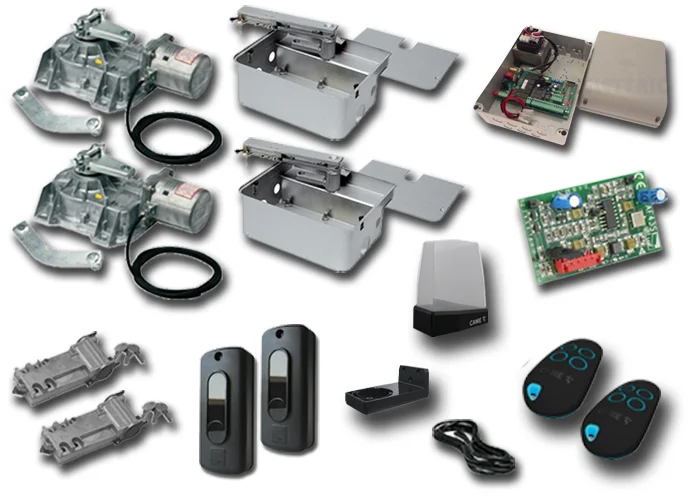

IT INCLUDES:- 2 FROG-A Irreversible gearmotors for swing gates measuring up to 3.5 m per leaf, with adjustable closing leaf-stop 230 Vac
- 2 FROG-CFNI Foundation boxes made of AISI 304 steel, with release latching lever, gate
fastening brace and screw for adjusting the opening limit point.
- 2 801XA-0030 Release devices with customized key and EURO-DIN cylinder
- 1 ZA3P Multifunction control panel for two-leaved swing gates, with limit-switch control and slow-down speed adjusting
- 2 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58 Antenna cable 5 Mt
- 1 DIR10 Pair of 12-24 Vac-dc outdoor photocells – range 10 Mt
- 1 806LA-0020 Led flashing light with power supply from 24 Vac-dc up to 230 Vac, with double built-in antenna (433.92 MHz and 868.35 MHz), with white dome- 1 806LA-0040 Wall-fastening base for krx flashing lights
- 1 Gate plate
