CAME- AUTOMATION KIT FROG-A 001U1910, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX. 3.5 MT PER LEAF
230V AC MOTOR
KIT FROG-A
001U1910 U1910
230V AC

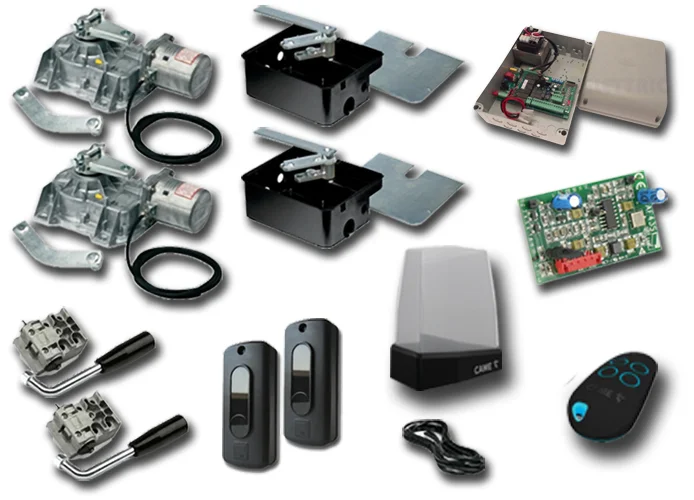

IT INCLUDES:
- 2 FROG-A: Irreversible gearmotors for swing gates measuring up to 3.5 Mt per leaf, with adjustable closing leaf-stop, 230V AC
- 2 FROG-CFN: Foundation boxes with cataphoretic rustproof treatment, resetting release lever, gate fastening brace and screw for adjusting the opening limit-switch point
- 2 A4364: Release devices with lever key
- 1 ZA3P: Multifunction control panel for swing gates with two leaves
- 1 AF43S: Plug-in radio-frequency control card 433,92 MHz
- 1 806TS-0270 TOP44RBN: 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: Antenna cable 5 Mt
- 1 DIR10: Pair of 12-24 Vac-dc outdoor photocells – range 10 Mt
- 1 806LA-0020: Led flashing light with power supply from 24 Vac-dc up to 230 Vac, with double built-in antenna (433.92 MHz and 868.35 MHz), with white dome
- 1 Gate plate
