CAME - AUTOMATION KIT AXO 001U7340
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 7 MT PER LEAF WITH 230V AC MOTOR.
- MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
- DEVELOPED WITH TECHNOLOGY CONNECT FOR DIGITAL REMOTE MANAGEMENT VIA GATEWAY OR LOCALLY VIA CAME KEY
- OPENING TIME 90° - 40 SECONDS.
KIT AXO
001U7340 U7340
230V AC

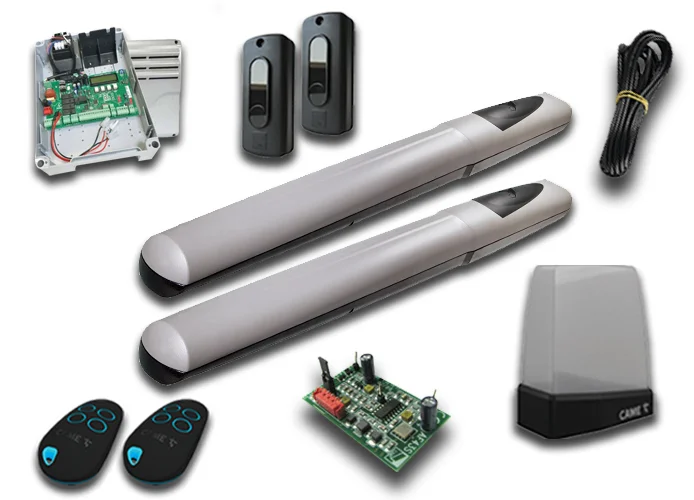

IT INCLUDES:
- 2 AX71230 Motoréducteur réversible avec encodeur pour vantaux jusqu'à 7 m, 230V AC, temps d'ouverture 90° - 40 secondes
- 1 ZM3E Multifunction control panel for two-leaf swing gates, with graphic display, self-diagnosis of safety devices and built-in radio decoding.
- 1 AF43S Plug-in radio card 433,92 MHz
- 2 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58 Antenna connection cable 5 Mt
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells - range 10 Mt
- 1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 Gate plate.
