CAME - AUTOMATION KIT ATI, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR 2-LEAF SWING UP TO 3 MT PER LEAF
24V DC MOTOR
KIT ATI
001U7111FR U7111FR (EX U7110)
24V DC

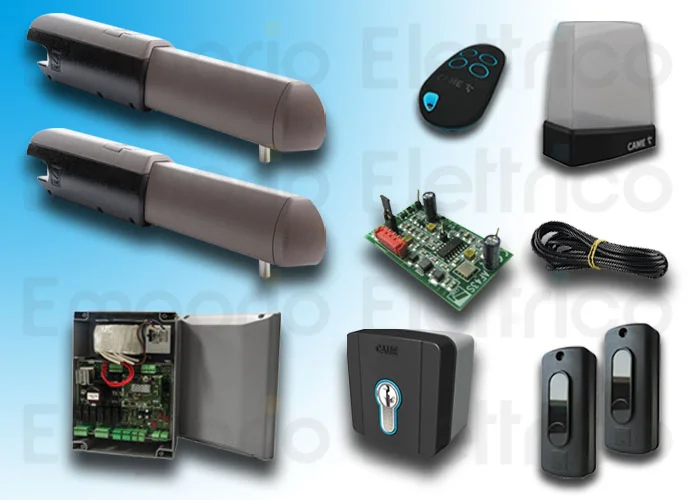

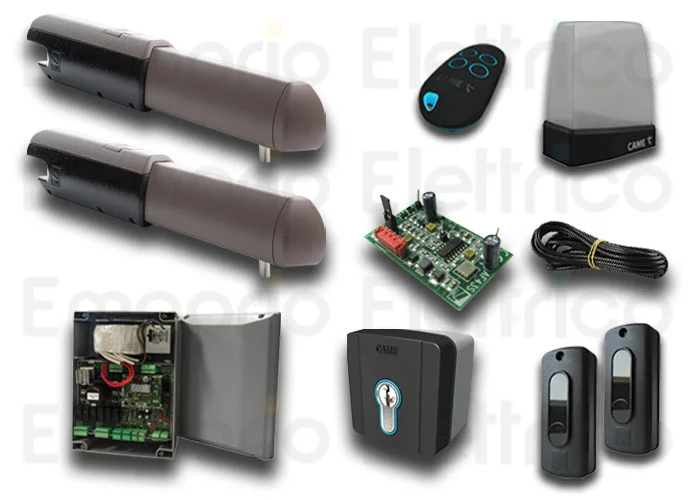

IT INCLUDES:
- 2 A3024N Irreversible gearmotors for swing gates with leaves measuring up to 3 Mt per leaf (opening time at 90°: adjustable)
- 1 ZL65 Control panel for gate with one or two swing leaves with graphic programming-display and segmented alerts plus self-diagnosing safety devices
- 1 AF43S Plug-in radio-frequency control card 433,92 MHz
- 1 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58 Antenna cable 5 Mt
- 1 SET-E Surface-mounted key-switch selector with aluminium alloy casing and din lock cylinder
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells. Range 10 Mt
- 1 806LA-0020: Led flashing light with power supply from 24 Vac-dc up to 230 Vac, with double built-in antenna (433.92 MHz and 868.35 MHz), with white dome
- 1 gate plate
