CAME AUTOMATION KIT ATI, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR 2-LEAF SWING UP TO 3 m PER LEAF
24V DC MOTOR
001U7117 24V DC

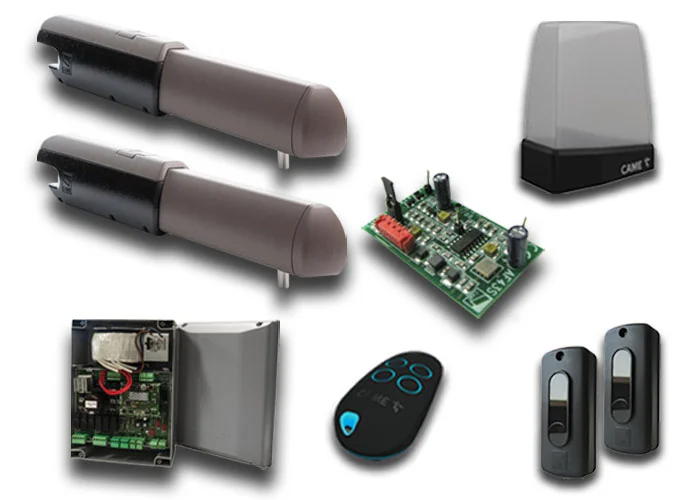

IT INCLUDES:
- 2 A3024N Irreversible gearmotors for swing gates with leaves measuring up to 3 Mt per leaf (opening time at 90°: adjustable)
- 1 801QA-0050 Multifunctional control panel for two-leaf gates 24V
- 1 AF43S Plug-in radio-frequency control card 433,92 MHz
- 1 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells. Range 10 m
- 1 806LA-0020: Led flashing light with power supply from 24 Vac-dc up to 230 Vac, with double built-in antenna (433.92 MHz and 868.35 MHz), with white dome
- 1 Gate plate
