CAME - AUTOMATION KIT 868 MHz FROG-AE 001U1988, TESTED ACCORDING TO EN 12453-EN 12445.
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 3,5 MT PER LEAF WITH 230V AC MOTOR.
KIT FROG-AE 868 MHz
001U1988 U1988
230V AC

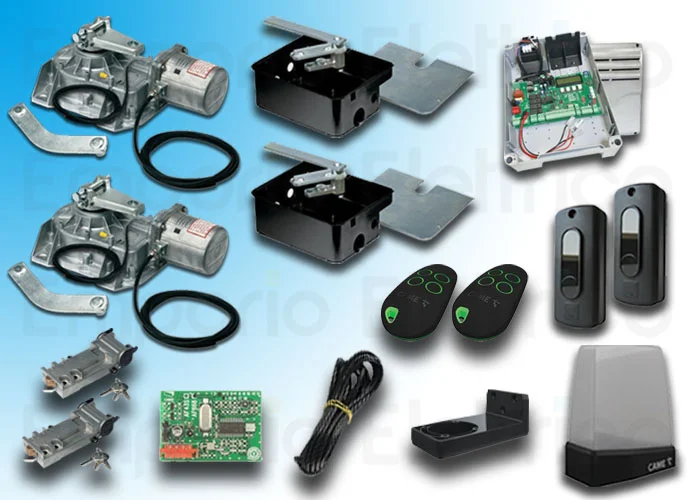

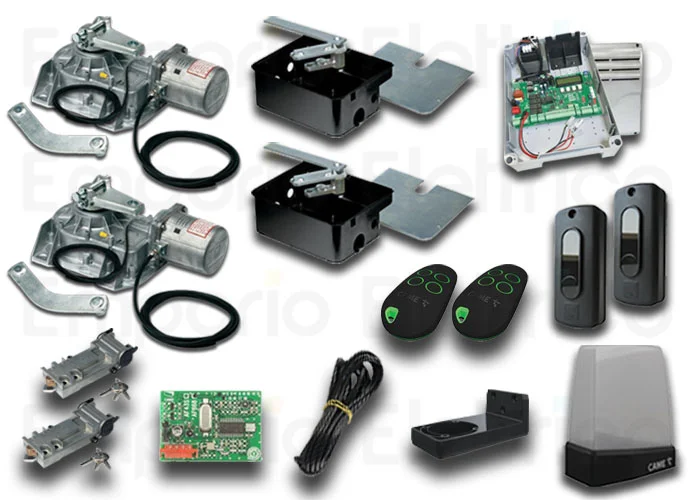

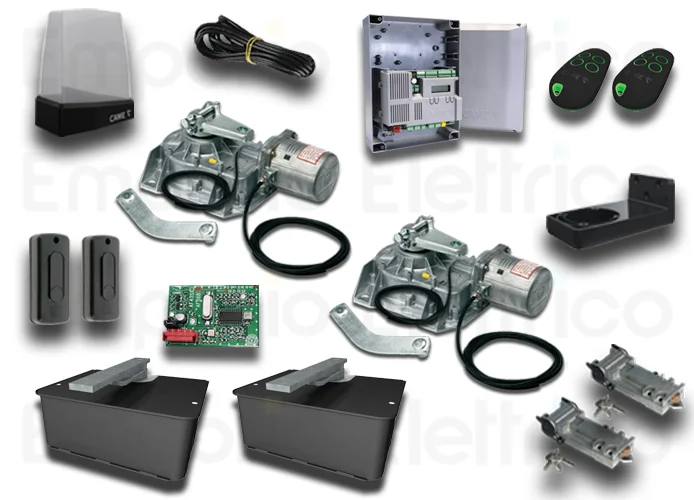

IT INCLUDES:
- 2 FROG-AE Irreversible underground gearmotor with encoder for swing gates up to 3.5 m per leaf, with adjustable closing leaf stop
- 2 FROG-CFN Cataphoresis-treated steel foundation box, complete with release fixing lever, fixing bracket to the gate and screw for adjusting the limit switch point on opening
- 2 801XA-0030 Unlocking device with personalised key and cylinder EURO-DIN
- 1 ZM3E Multifunction control panel for two-leaf swing gates, with graphic display, self-diagnosis of safety devices and built-in radio decoding.
- 1 AF868 Plug-in radio frequency card at 868,35 MHz
- 2 806TS-0290 TOPDREN Dual-frequency 4-channel rolling code transmitter
- 1 TOP-RG58 Antenna connection cable 5 Mt
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells - range 10 Mt
- 1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 806LA-0040: Wall-fastening base for krx flashing lights
- 1 Gate plate.
