CAME - AUTOMATION KIT 801MS-0020 BX704AGS (EX BX-74), TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR SLIDING GATES UP TO 400 KG
230V AC MOTOR
KIT BX
001U2923 U2923
230V AC

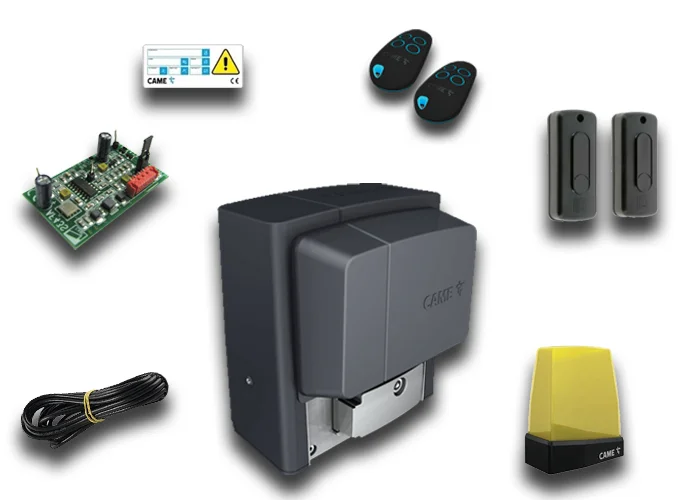

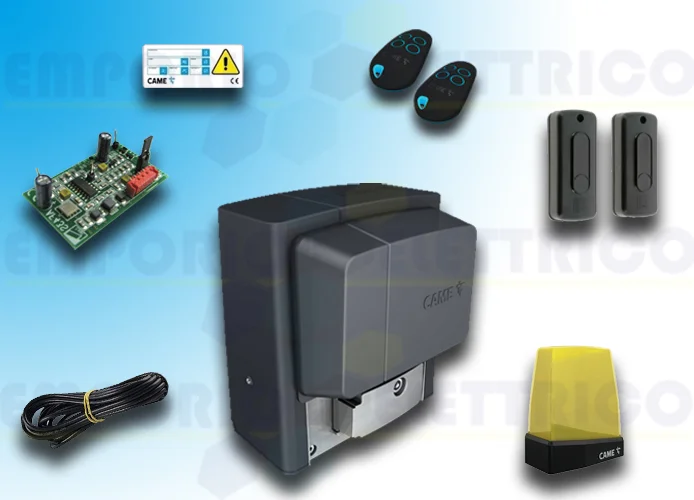

IT INCLUDES:
- 1 801MS-0020 BX704AGS Operator with control board, on-board radio decoding, movement control and obstruction detecting device, plus mechanical limit-switches for sliding gates weighing 400 kg and measuring up to 4 m long.
- 2 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 AF43S Plug-in radio-frequency control card 433,92 MHz
- 1 TOP-RG58 Antenna cable 5 mt
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 m
- 1 806LA-0030 Led flashing light with power supply from 24 v ac - dc up to 230 v ac with yellow dome, double built-in antenna (433.92 mhz and 868.35 mhz)
- 1 Gate plate
