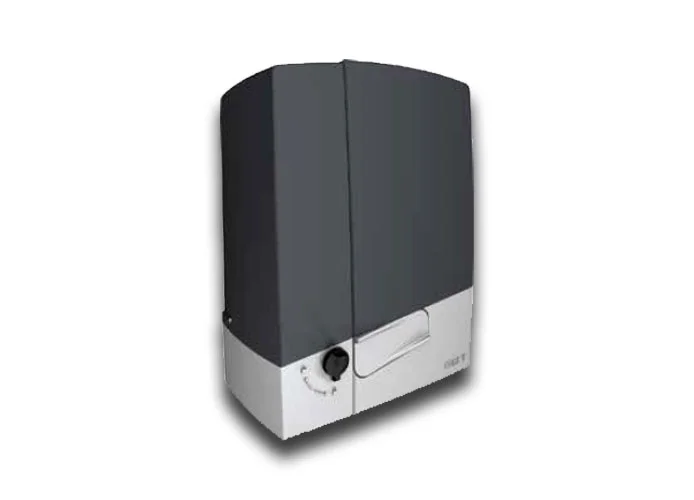

CAME - AUTOMATION WITH 24V DC MOTOR PLUS VERSION, FOR GATES UP TO 600 KG AND 18 M LENGTH, TESTED IN ACCORDANCE WITH EN 12453
- SUITABLE FOR RESIDENTIAL AND CONDOMINIUM USE
- EQUIPPED WITH ELECTRONIC BOARD WITH GRAPHIC DISPLAY, ADAPTIVE SPEED & TORQUE TECHNOLOGY, CXN BUS, B1 AND B2 SECOND CONTACT OUTPUT, BUILT-IN RADIO DECODER, MOVEMENT MANAGEMENT, OBSTACLE DETECTION
- AUTOMATION ALSO EQUIPPED WITH ENCODER IN THE FAST VERSION
- PREPARED FOR OPERATION IN THE EVENT OF A POWER FAILURE
- PROVISION FOR INSTALLATION OF MAGNETIC LIMIT SWITCHES AND HEATER
- ELECTRONIC BOARD WITH TERMINAL BLOCKS, DISPLAY AND STORAGE FOR UP TO 250 USERS
- SELF-DIAGNOSIS OF SAFETY DEVICES
- COUPLED CONNECTION VIA RSE ACCESSORY
- DEVELOPED WITH CONNECT TECHNOLOGY FOR DIGITAL REMOTE MANAGEMENT VIA GATEWAY OR LOCALLY VIA CAME KEY
BX BXV06AGE
801MS-0580
24V DC
TECHNICAL DETAILS:
DEGREE OF PROTECTION (IP): 54
POWER SUPPLY (V - 50/60 Hz): 230 AC
MOTOR POWER SUPPLY (V): 24 DC
TORQUE (W): 270
SPEED OF MANOEUVRE (m/min): 12
CYCLES/HOUR: CONTINUOUS SERVICE
THRUST (N): 600
OPERATING TEMPERATURE (°C): -20 ÷ +55
