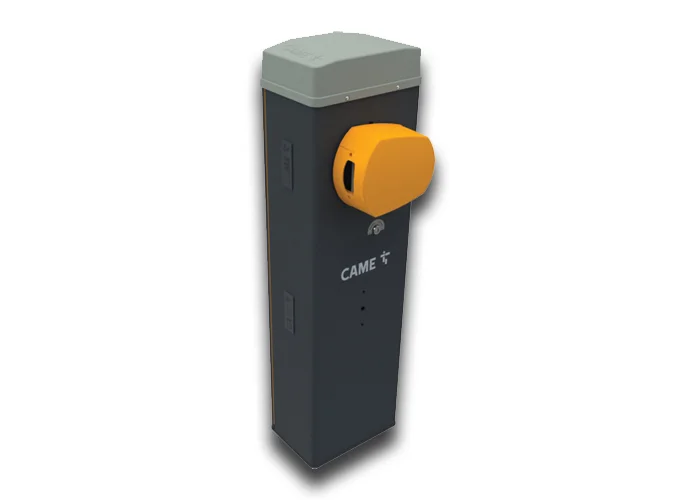

CAME - AUTOMATIC BARRIER WITH 24V IRREVERSIBLE MOTOR GARD LS4 GLS40AGS.
- 24VDc GEARMOTOR WITH ADVANCED SPEED CONTROL
- INTENSIVE USE 300 CYCLES/HOUR WITH MCBF 1.5 MILLION CYCLES
- PASSAGE UP TO 3.8M
- ENCLOSURE AVAILABLE IN RAL7024 GALVANISED STEEL, SATIN-FINISH AISI 304 STEEL, OR CUSTOMISED COLOUR
- WITH ENCODER
- ELECTRONIC BOARD WITH DISPLAY CLOUD CONNECTION VIA CAME CONNECT
- ACCESSORIES THAT CAN BE INTEGRATED DIRECTLY FROM THE ENCLOSURE
- PREPARED FOR LED SIGNALLING
- BALANCING SPRINGS INCLUDED
- CAN BE INTEGRATED WITH THIRD-PARTY SYSTEM VIA MODBUS PROTOCOL .
AUTOMATIC BARRIER
GARD LS4
TECHNICAL FEATURES:
DEGREE OF PROTECTION: (IP) 54
POWER SUPPLY: (V - 50/60 HZ) 220-230 AC
MOTOR POWER SUPPLY: (V) 24 DC
POWER : (W) 190
OPENING TIME: 90° (S) 2 ÷ 6 CYCLES/HOUR 300
OPERATING TEMPERATURE: (°C) -20 ÷ +55 (-40 WITH ART. 803XA-0630).
