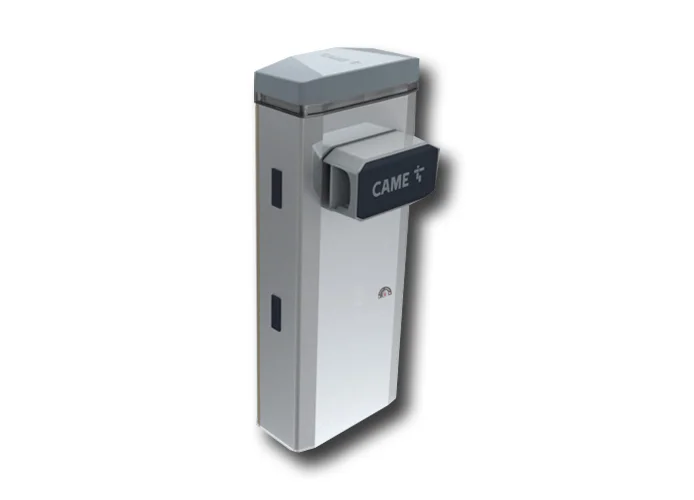

CAME - 230 Vac AUTOMATIC BARRIER, WITH 24 Vdc MOTOR AND INCORPORATED CONTROL PANEL.
- IRREVERSIBLE GEARMOTOR WITH ENCODER
- GALVANISED, PAINTED STEEL ENCLOSURE WITH PROVISION FOR ACCESSORIES
- ELECTRONIC BOARD WITH DISPLAY, CAME CONNECT TECHNOLOGY AND INPUTS FOR CXN BUS ACCESSORIES
- TESTED FOR INTENSIVE USE OF 160 CYCLES/HOUR WITH MCBF 3 MILLION CYCLES
- PASSAGE UP TO 7.8 METRES
- IDEAL SOLUTION FOR CONDOMINIUM AND INDUSTRIAL APPLICATIONS.
BALANCING SPRINGS INCLUDED
BARRIER GARD GT8
GGT80AGS 803BB-0270
TECHNICAL FEATURES:
- DEGREE OF PROTECTION (IP): 54
- POWER SUPPLY (V - 50/60 Hz): 230 Vac
- MOTOR POWER SUPPLY (V): 24 Vdc
- POWER (W): 300
- OPENING TIME AT 90° (s): 4 ÷ 8
- CYCLES/HOUR: 160
- OPERATING TEMPERATURE: - 20 ÷ +55 (-40 WITH ART. 001PSRT01)
- COLOUR RAL: -
