came aisi steel barrier gard gt4 ggt40aax4 803bb-0240

SKU: 803BB-0240

€3,473.00  €2,600.93VAT INCLUDED

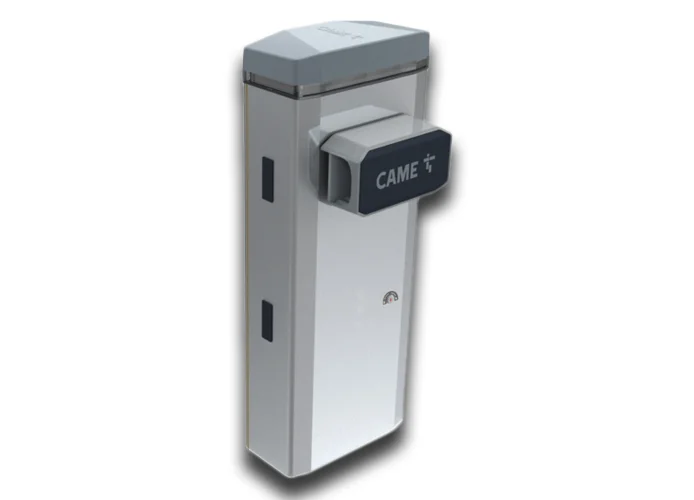

CAME - AUTOMATIC BARRIER WITH 24V DC IRREVERSIBLE GEARMOTOR WITH ENCODER; SATIN-FINISH AISI 304 STEEL CABINET WITH PROVISION FOR ACCESSORIES

- 24V DC GEARMOTOR WITH ADVANCED SPEED TECHNOLOGY
- ELECTRONIC BOARD WITH DISPLAY, CONNECT TECHNOLOGY AND INPUTS FOR CXN BUS ACCESSORIES
- ACCESSORIES CAN BE INTEGRATED DIRECTLY INTO THE CABINET
- HIGH-VISIBILITY RED/GREEN SIGNAL LEDS ON THE CROWN AND ON BOTH SIDES OF THE SHAFT
- CAN BE INTEGRATED WITH THIRD-PARTY SYSTEM VIA MODBUS PROTOCOL


BALANCING SPRING INCLUDED
BUILT-IN CONTROL PANEL

FROM 2021 IT REPLACES THE MODELS:

001G4040IE GARD4 4040 BARR 230V 24V MOT ENC SS
001G4040IZ GARD4 4040 BARR 230V 24V MOT 304 SS



GGT40AX4
803BB-0240
24V DC

TECHNICAL DETAILS:
MAX. PASSAGE WIDTH: 4 METERS
DEGREE OF PROTECTION: IP54
POWER SUPPLY: 230V AC - 50/60 Hz
MOTOR POWER SUPPLY: 24V
THRUST: 240W
OPENING TIME AT 90°: 2/6 SECONDS
CYCLES/HOUR: 300
OPERATING TEMPERATURE (C°) -20° / +55°C

  • Brand: CAME
