came 2x 230v gearmotor axo 001ax302304 2 ax302304

SKU: 001AX302304 2

€1,532.00  €658.76VAT INCLUDED
0 days 0 hours 25 minutes remaining for expedited shipping

Maximum quantity of this item to benefit from Speedy delivery: 1

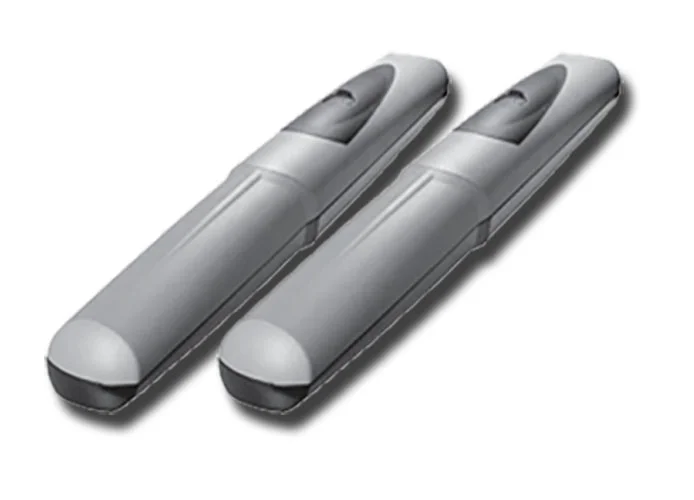

CAME - 2 x IRREVERSIBLE GEARMOTORS WITH ENCODER, 230V AC, SELF LOCKING OPERATOR FOR SWING GATES, LEAVES OF UP TO 3 MT
DIE-CAST ALUMINIUM SUPPORTING STRUCTURE
MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
DEVELOPED WITH CONNECT TECHNOLOGY FOR DIGITAL REMOTE MANAGEMENT VIA GATEWAY OR LOCALLY VIA CAME KEY
90° OPENING TIME: 20 SECONDS
SOLUTION FOR RESIDENTIAL AND CONDOMINIUM APPLICATIONS
POWER SUPPLY: 230V AC




001AX302304 2   230V AC

Type Width max leaf  Weight max leaf
AX302304 AX3024 2 m 800 kg
2,5 m 600 kg
3 m 500 kg
- -
- -
- -
- -
AX402306 AX412306 2 m 800 kg
2,5 m 600 kg
3 m 500 kg
4* m 300 kg
- -
- -
- -
AX5024 2 m 1000 kg
2,5 m 800 kg
3 m 700 kg
4* m 500 kg
5* m 400 kg
- -
- -
AX71230 2 m 1000 kg
2,5 m 800 kg
3 m 700 kg
4* m 500 kg
5* m 400 kg
6*° m 350 kg
7*° m 300 k



Type Opening  A mm B mm C max mm LM mm
AXO 3 90° 130 130 70 800
120° 150 100 50 800
AXO 4 90° 130 130 70 800
120° 150 100 50 800
AXO 5 90° 200 220 150 1100
120° 220 220 100 1100
AXO 7 90° 200 220 150 1100
120° 220 220 100 1100



* It is mandatory to provide an electric lock on the leaf.
º Leaves longer than 5 m must not be panelled. In reversible versions, in the event of strong winds when the gate is open, the leaf may close again.



Type AX302304 AX402306-AX412306 AX71230 AX3024 AX5024
Protection level IP44 IP44 IP44 IP44 IP44
Power supply 230V 50/60 Hz 230V 50/60 Hz 230V 50/60 Hz 230V 50/60 Hz 230V 50/60 Hz
Motor power supply 220V 230V 230V 24V 24V
Absorption 1,5 1,5 1,5 10 MAX 10 MAX
Nominal power 175W 175W 175W 120W 120W
Opening time (90°) 20 28 40 adjustable adjustable
Duty cycle 50 30 30 intensive use intensive use
Thrust 500-4500N 500-4500N 500-4500N 500-4500N 500-4500N
Operating temperature -20°C min / 55°C max -20°C min / 55°C max -20°C min / 55°C max -20°C min / 55°C max -20°C min / 55°C max
Motor's heat protection 150 150 150 - -



Complementary accessories (not included):
- ZM3E Multifunction control panel for swing gates with two leaves, graphic programming and alerts display, plus self-diagnosing safety devices and on-board radio decoding
- LOCK81: Single cylinder electric lock
- LOCK82: Double cylinder electric lock

  • Brand: CAME
