came 24v irreversible gearmotor 001frog-a24 frog-a24

SKU: 001FROG-A24

€850.00  €501.50VAT INCLUDED

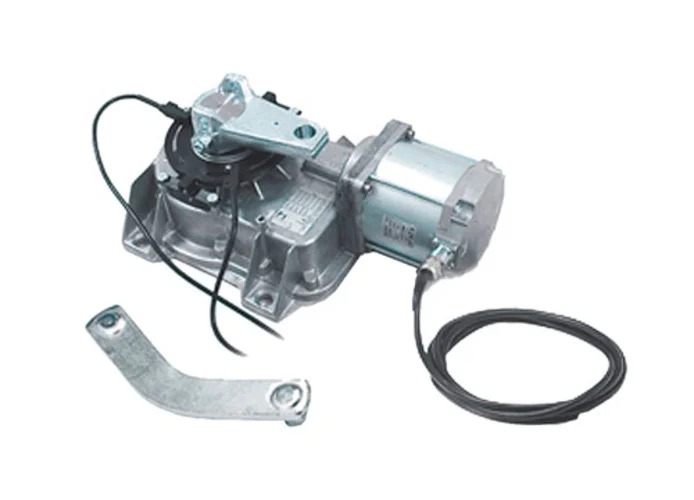

CAME - IRREVERSIBLE UNDERGROUND 24 V WITH ADJUSTABLE LEAF-CLOSING GEARMOTOR FOR SWING GATES WITH UP TO 3,5 METRES PER LEAF THAT WEIGHS UP TO 400 KG
MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
AUTOMATIC RE-ENGAGEMENT OF THE RELEASE SYSTEM AFTER MANUAL OPERATION OF THE GATE
PROVISION FOR OPERATION IN THE EVENT OF A POWER FAILURE

GEARMOTOR TESTED IN ACCORDANCE WITH EN12453 - EN12445 STANDARDS
90° MANOEUVRING TIME: ADJUSTABLE
PROTECTION LEVEL: 67
POWER SUPPLY: 24V DC
(1 PIECE)




001FROG-A24    24V DC


Complementary accessories (not included):
- 002ZL170N: Control panel for single leaf gates with built-in radio decoding
- 002ZL19N: Control panel for two-leaf swing gates with built-in radio decoding
- 002LB18: Case with emergency card and provision for housing no. 3 batteries 12V 1.2Ah for control panels ZL170N and ZL19N
001FROG-CFN: Steel, cataphoresis treated foundation box
001FROG-CFNI: Foundation box made of AISI 304 steel
001A4364: Release device with lever key.
001A4365: Release device with trilobe key
001A4366: Release device with customized key and EURO-DIN cylinder
001A4370: Drive lever for openings of up to 140° and gate leaves of max. 2 m in length
001FL-180: Drive chain lever for up to 180° openings and gate leaves of max. 2 m in
length, FROG-A24 excluded
001LOCK81: Single cylinder electric lock
001LOCK82: Double cylinder electric lock



  • Brand: CAME
