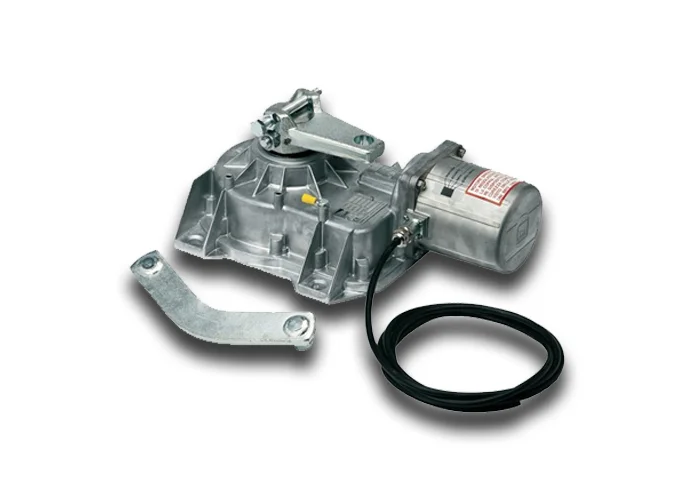

CAME - IRREVERSIBLE UNDERGROUND 230 V AC GEARMOTOR WITH ADJUSTABLE LEAF-CLOSING FOR SWING GATES WITH UP TO 3,5 mt  LEAVES THAT WEIGHS UP TO 400KG ( 1 PIECE )

MECHANICAL LIMIT SWITCHES, INTEGRATED AND ADJUSTABLE
POSSIBILITY TO OPEN THE GATE LEAF UP TO 180° USING THE ACCESSORY 001FL-180
AUTOMATIC RE-ENGAGEMENT OF THE RELEASE SYSTEM AFTER MANUAL OPERATION OF THE GATE

MANOEUVRING SPEED (90°) : 18 SECONDS
PROTECTION LEVEL FROM ATMOSPHERIC AGENTS: IP67
POWER SUPPLY: 230V AC

001FROG-A    230V AC

Complementary accessories (not included):
- 002ZA3P: Multifunction control panel, with limit-switch control and slow-down speed adjusting
- 001FROG-CFN: Steel, cataphoresis treated foundation box
- 001FROG-CFNI: Foundation box made of AISI 304 steel
- 001A4364: Release device with lever key.
- 001A4365: Release device with trilobe key
- 001A4366: Release device with customized key and EURO-DIN cylinder
- 001A4370: Drive lever for openings of up to 140° and gate leaves of max. 2 m in length
- 001FL-180: Drive chain lever for up to 180° openings and gate leaves of max. 2 m in
length, FROG-A24 excluded
- 001LOCK81: Single cylinder electric lock
- 001LOCK82: Double cylinder electric lock
