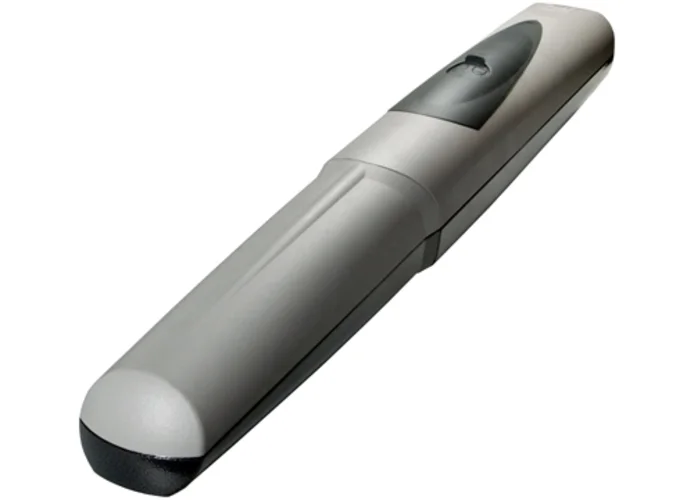

CAME - IRREVERSIBLE GEARMOTOR WITH ENCODER, 230V AC, SELF LOCKING OPERATOR FOR SWING GATES, LEAVES OF UP TO 3 MT
DIE-CAST ALUMINIUM SUPPORTING STRUCTURE
MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
DEVELOPED WITH CONNECT TECHNOLOGY FOR DIGITAL REMOTE MANAGEMENT VIA GATEWAY OR LOCALLY VIA CAME KEY
90° OPENING TIME: 20 SECONDS
SOLUTION FOR RESIDENTIAL AND CONDOMINIUM APPLICATIONS
POWER SUPPLY: 230V AC
001AX302304 230V AC
| Type | Width max leaf | Weight max leaf |
| AX302304 AX3024 | 2 m | 800 kg |
| 2,5 m | 600 kg |
| 3 m | 500 kg |
| - | - |
| - | - |
| - | - |
| - | - |
| AX402306 AX412306 | 2 m | 800 kg |
| 2,5 m | 600 kg |
| 3 m | 500 kg |
| 4* m | 300 kg |
| - | - |
| - | - |
| - | - |
| AX5024 | 2 m | 1000 kg |
| 2,5 m | 800 kg |
| 3 m | 700 kg |
| 4* m | 500 kg |
| 5* m | 400 kg |
| - | - |
| - | - |
| AX71230 | 2 m | 1000 kg |
| 2,5 m | 800 kg |
| 3 m | 700 kg |
| 4* m | 500 kg |
| 5* m | 400 kg |
| 6*° m | 350 kg |
| 7*° m | 300 k |
| Type | Opening | A mm | B mm | C max mm | LM mm |
| AXO 3 | 90° | 130 | 130 | 70 | 800 |
| 120° | 150 | 100 | 50 | 800 |
| AXO 4 | 90° | 130 | 130 | 70 | 800 |
| 120° | 150 | 100 | 50 | 800 |
| AXO 5 | 90° | 200 | 220 | 150 | 1100 |
| 120° | 220 | 220 | 100 | 1100 |
| AXO 7 | 90° | 200 | 220 | 150 | 1100 |
| 120° | 220 | 220 | 100 | 1100 |
| * It is mandatory to provide an electric lock on the leaf. |
| º Leaves longer than 5 m must not be panelled. In reversible versions, in the event of strong winds when the gate is open, the leaf may close again. |
| Type | AX302304 | AX402306-AX412306 | AX71230 | AX3024 | AX5024 |
| Protection level | IP44 | IP44 | IP44 | IP44 | IP44 |
| Power supply | 230V 50/60 Hz | 230V 50/60 Hz | 230V 50/60 Hz | 230V 50/60 Hz | 230V 50/60 Hz |
| Motor power supply | 220V | 230V | 230V | 24V | 24V |
| Absorption | 1,5 | 1,5 | 1,5 | 10 MAX | 10 MAX |
| Nominal power | 175W | 175W | 175W | 120W | 120W |
| Opening time (90°) | 20 | 28 | 40 | adjustable | adjustable |
| Duty cycle | 50 | 30 | 30 | intensive use | intensive use |
| Thrust | 500-4500N | 500-4500N | 500-4500N | 500-4500N | 500-4500N |
| Operating temperature | -20°C min / 55°C max | -20°C min / 55°C max | -20°C min / 55°C max | -20°C min / 55°C max | -20°C min / 55°C max |
| Motor's heat protection | 150 | 150 | 150 | - | - |
Complementary accessories (not included):
- ZM3E Multifunction control panel for swing gates with two leaves, graphic programming and alerts display, plus self-diagnosing safety devices and on-board radio decoding
- LOCK81: Single cylinder electric lock
- LOCK82: Double cylinder electric lock
