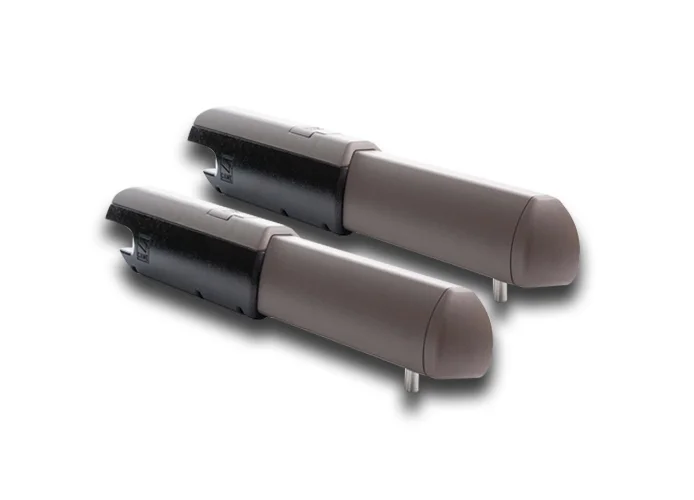

CAME - 2 IRREVERSIBLE GEARMOTORS FOR SWING GATES UP TO 3 METERS PER LEAF
OPENING TIME OF THE LEAF 90°: 19 - 32 SECONDS
CURRENT DETECTION OF THE OBSTACLE
EQUIPPED WITH MICRO OF OPENING LIMIT SWITCH
SOLUTION FOR RESIDENTIAL AND CONDOMINIUM APPLICATIONS
POWER SUPPLY: 230V AC
( 2 PIECES )
2 x 001A3000 A3000
230V AC
| Type | A3000/A3100
A5000/A5100 | A3006/3106
A5006/A5106 | A3024N
A5024N |
| Protection level | IP44 |
| Power supply | 230V 50/60 Hz | 230V 50/60 Hz/24V D.C. |
| Motor power supply | 230V 50/60 Hz | 24V D.C. |
| Absorption | 1,2A | 10A max |
| Nominal power | 150W | 120W |
| Duty cycle | 50% | intensive duty |
| Thrust | 400-3000N |
| Motor's heat protection | 150°C | |
| Maneuvering time (90°) | 19-32s | 28-45s | adjustable |
| Operating temperature | -20 °C min +55 °C max |
Complementary accessories (not included):
- ZA3P: Multifunctional control panel with built-in radio decoding
- LOCK81: Single cylinder electric lock
- LOCK82: Double cylinder electric lock
- D001: Lock cylinder with din key
- H3000: Case for remote release with customized key, pull-cord handle and control button. Cord length L=5m
