BFT - SHUTTER OPERATOR KIT WITH 200 mm DIAMETER PULLEY
- MAX. TORQUE 170 Nm AND ABSORBED POWER 600W
- RELEASE WITH STEEL CABLE AND KNOB FOR ELECTRO-BRAKE
- CONTROL UNIT, PHOTOCELLS AND FLASHING LIGHT, WALL SAFE FOR RELEASE
- ADAPTERS FOR SPRING HOLDER AND SHAFT INCLUDED IN THE PACKAGE
WIND AC AKIT 170/200-60 EF AUTO
2614070 R965005 00001

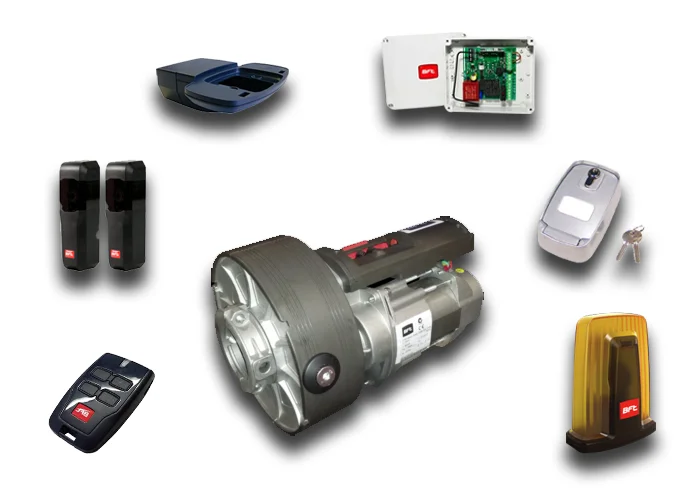

IT INCLUDES:
- 1 P910055 00002 WIND AC A170/200-60 230V: Shutter operator with 200 mm diameter pulley. Maximum torque 170 Nm and power consumption 600 W.
Reversible
- 1 D114183 00002 LUNA AC B 230V 50/60HZ: Control panel for one shutter operator at 230V, 1200W.
- 1 D111906 MITTO B RCB04 R1: 4-channel transmitter. Range 50/100 m. Power supply 12 V with 1 battery type 23 A
- 1 N574039 BOX: Wall safe for steel cable release and electrical control, cable not supplied
- 1 P111782 COMPACTA A20-180: Pair of adjustable photocells, 180° horizontally. Range 20 metres. Power supply 12 - 33Vac / 15 - 35Vdc
- 1 D114093 00002 RADIUS LED AC A R1: Flashing light with integrated antenna for 230V powered motors
- 1 P123025 B 00 R02: Wall bracket for B-series flashing light LTA
