BFT - COMPLETE 230V KIT FOR SWING GATES WITH ANTI UP TO 200 KG WEIGHT AND 3.5 METRES LENGTH
- EQUIPPED WITH INTEGRATED MECHANICAL STOPS ON BOTH OPENING AND CLOSING
- MAGNETIC LIMIT STOP SYSTEM (NOT INCLUDED) GUARANTEES MAXIMUM PRECISION AND RELIABILITY
MAXIMUM DOOR LENGTH WITHOUT ELECTRIC LOCK: 2 METRES
MAX. MOTOR TORQUE: 200 Nm
MAXIMUM ANGLE: 120°
OPENING TIME AT 90°: 11‘’ (WITH SLOWDOWN)
DEGREE OF PROTECTION: IP67
ENVIRONMENTAL CONDITIONS: -20/+55 °C
POWER SUPPLY: 230V AC
KIT ELI AC A35 VELOCE
EMPBFTELIAC
230V AC
(R930149 00001 + 2 N733397)

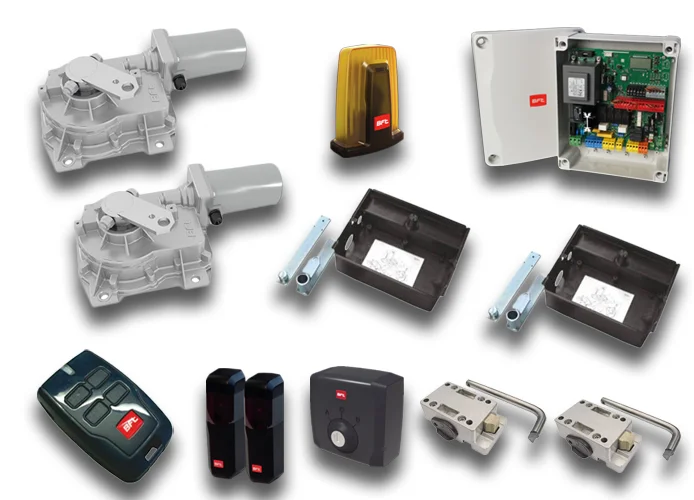

INCLUDES:
- 2 P930131 00002 ELI AC A35 VELOCE: 230v underground electromechanical operator for swing gates weighing up to 200 kg and 3.5 metres in length
- 2 N733397 BTCF 120 E: Foundation box with levers for ELI AC A, ELI BT A. Release not supplied
- 2 N733392 SCC: Release for ELI AC A, ELI BT A and SUB BT with lever key
- 1 D113833 00002 RIGEL 6: Universal display control panel for one or two operators 230V, 650+650W
- 1 D114093 00002 RADIUS LED AC A R1: Flashing light with integrated antenna for 230V powered motors
- 1 P111782 COMPACTA A20-180: Pair of photocells adjustable 180° horizontally. Range 20 metres. Power supply 12 - 33Vac / 15 - 35Vdc.
- 1 P121022 Q.BO KEY WM: Outdoor key-operated selector switch with double contact.
- 1 D111906 MITTO B RCB04 R1: 4-channel transmitter. Range 50/100 m. Power supply 12 V with 1 battery type 23 A
- 1 Warning sign.
